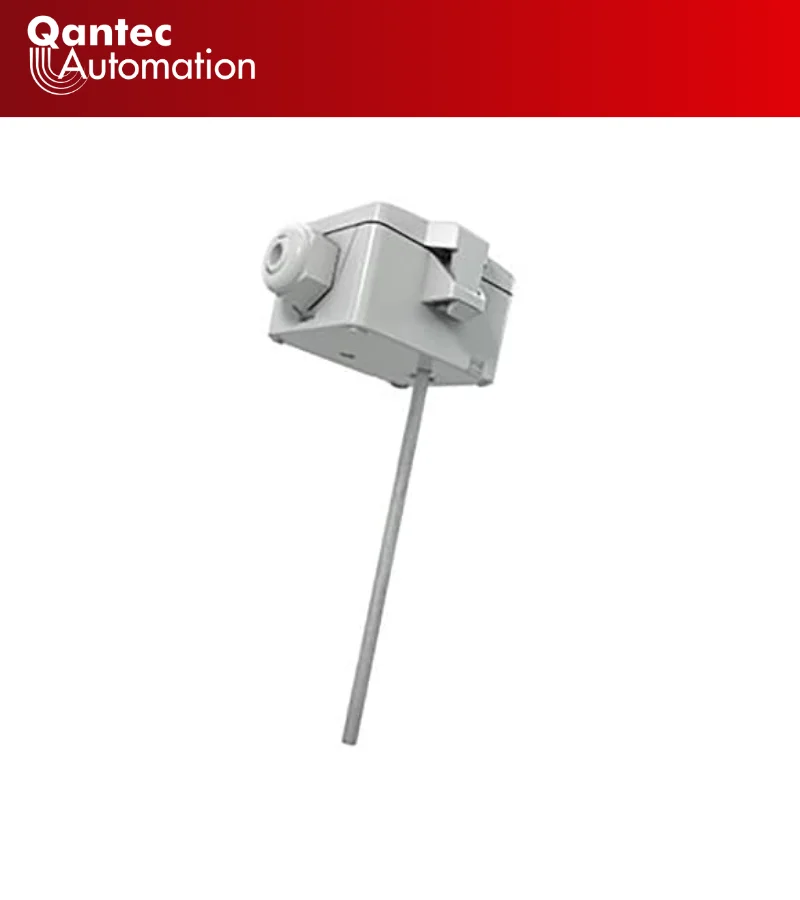

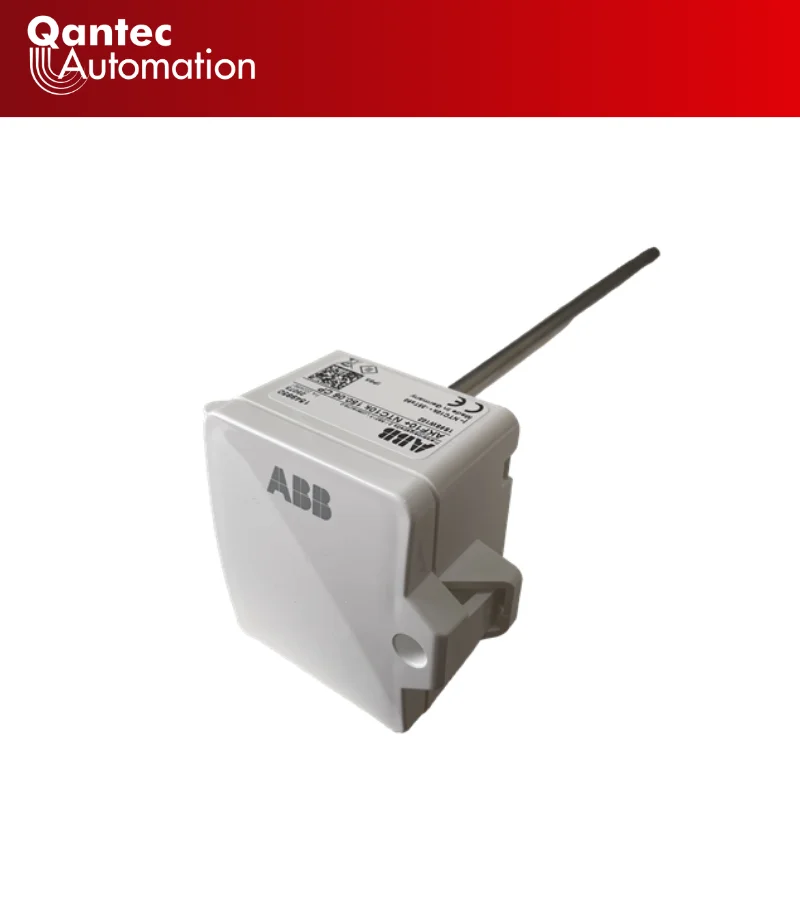

NTC10k, -50…+150 °C, Connection head: Polyamide white, IP65, Probe: 135 x 7 mm, 316Ti Stainless Steel.
ABB 135 mm Immersion Temperature Sensor 135mm (AKF1013507) (1S9SW102)
$40.21 ex GST
Share:
Product Description
Product Specification
| Specification | Details |
|---|---|
| Product ID | 2CQG505103R2021 |
| EAN | 5391539124264 |
| Product Type | 1S9SW102 |
| Product Name | 135 mm Immersion Temperature Sensor 135mm (AKF1013507) |
| Product Category | Field Sensors |
| Description | NTC10k, -50…+150 °C, Connection head: Polyamide white, IP65, Probe: 135 x 7 mm, 316Ti Stainless Steel. |
| Price excluding GST | 40.21 |
| Air Temperature | -25 … 90 °C |
| Degree of Protection | IP65 |
| Datasheet | View Datasheet |
| Inputs | 0, wired, screw, NTC10K with Transducer |
| Material / Color | Connection head: white polyamide, Probe: stainless steel |
| Supply Voltage | AC 21.6…26.4V / DC 15…24V |
| Dimensions (W x H x D) & Weight | 78mm, 58mm, 190mm, 0.2kg |
| CMRT | Download Excel |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2B / B2C | B2B |
| EU Data Act Compliance | 2025 Applicable – Compliant |
| ETIM 9 | EC004240 – Sensor (HVAC) |
| ETIM 10 | EC004240 – Sensor (HVAC) |
