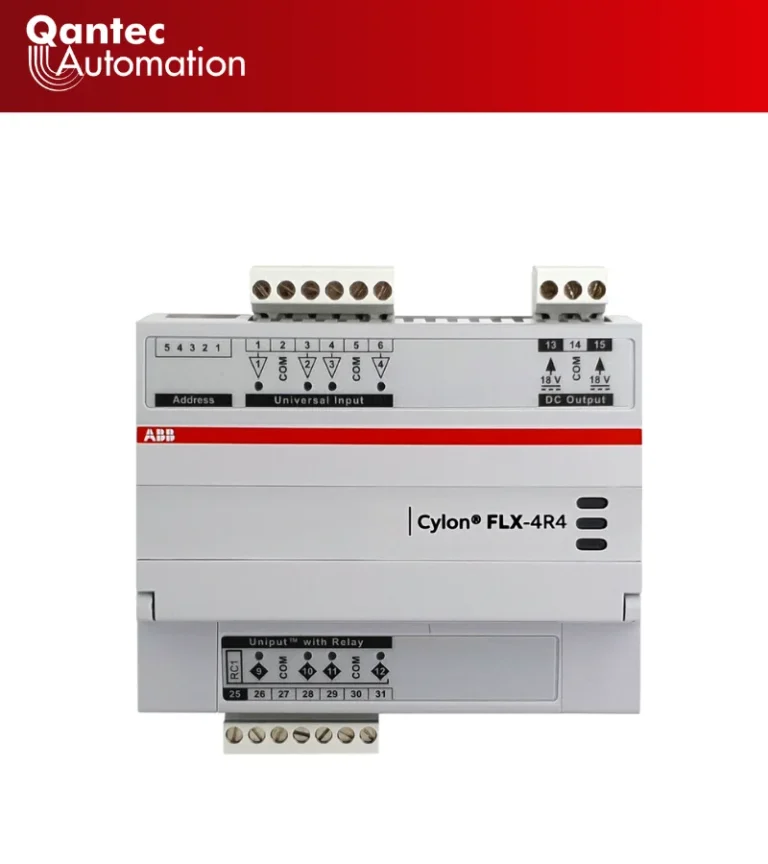

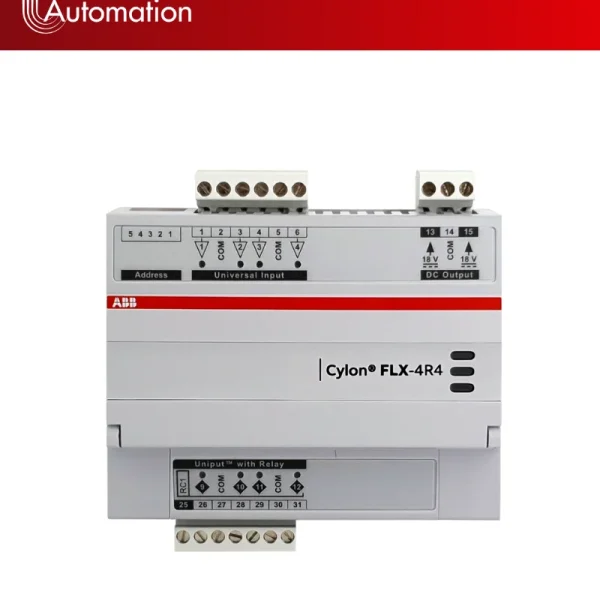

ABB FLX-4R4 (1M101106)
ABB FLX-4R4 (1M101106) $594.00 EX GST
Click to enlarge

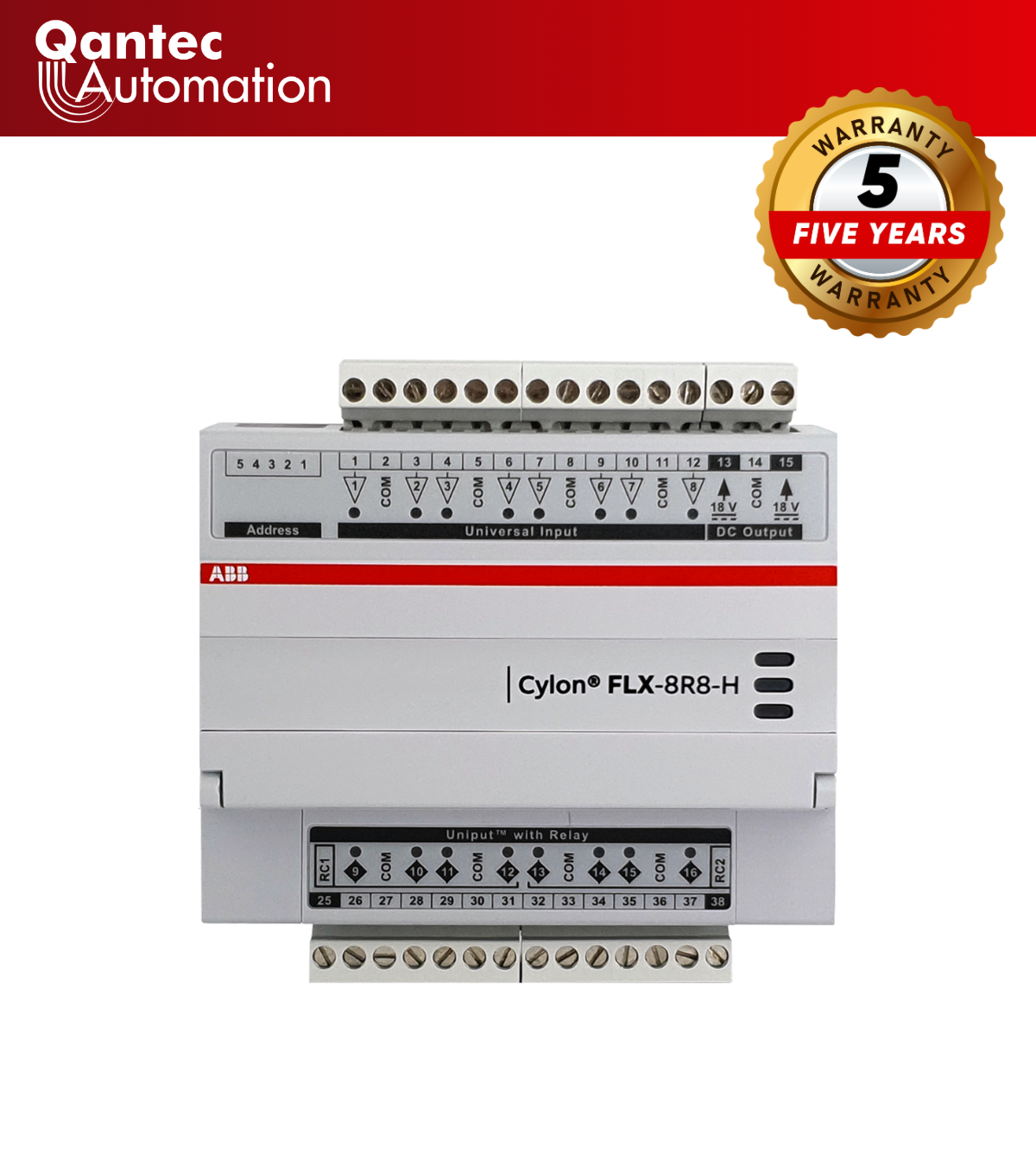

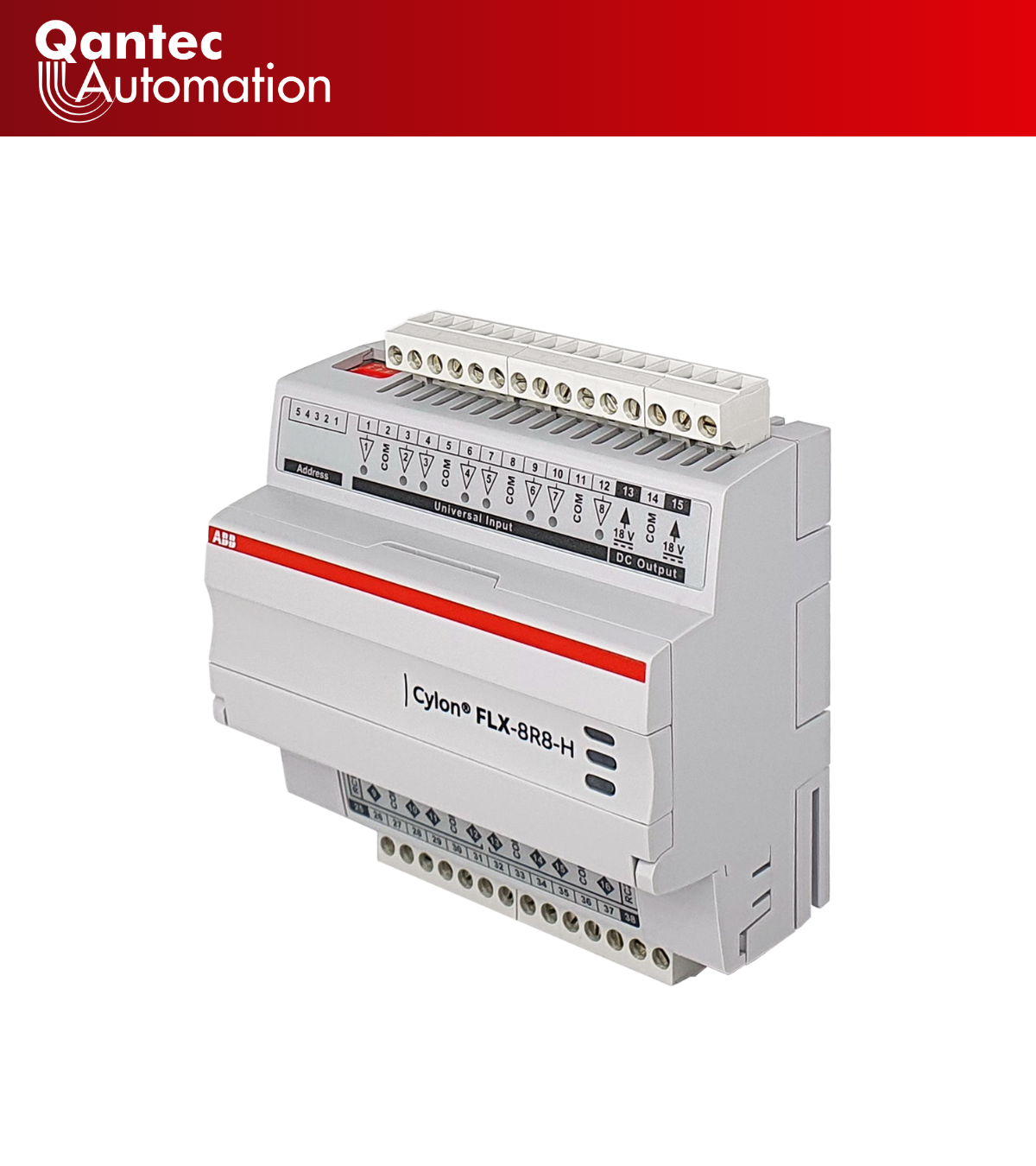

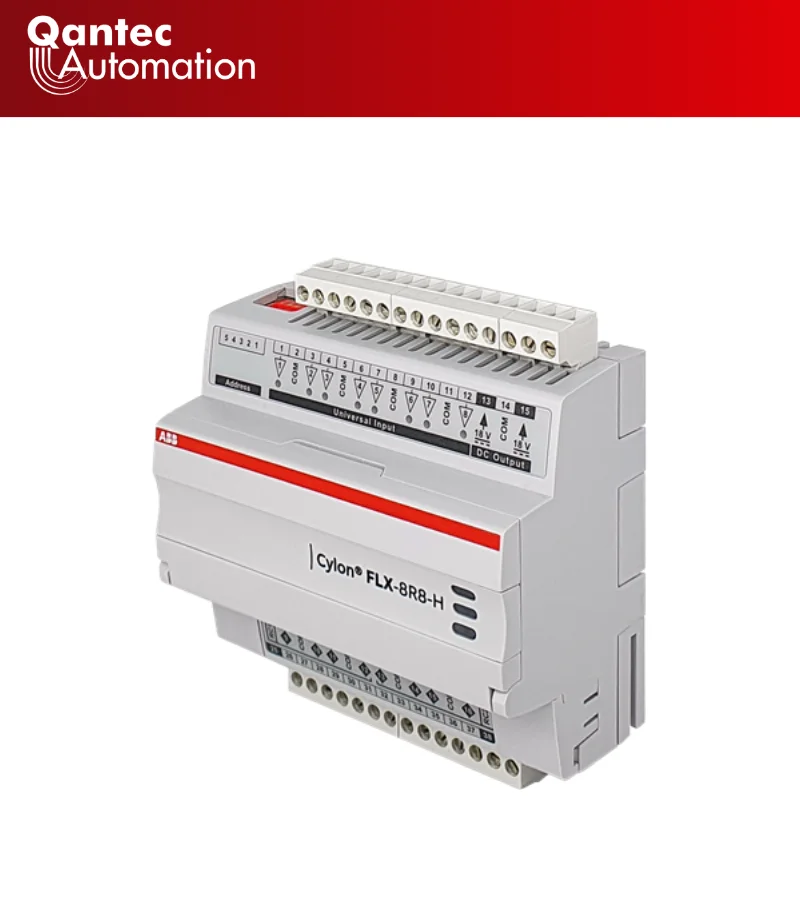

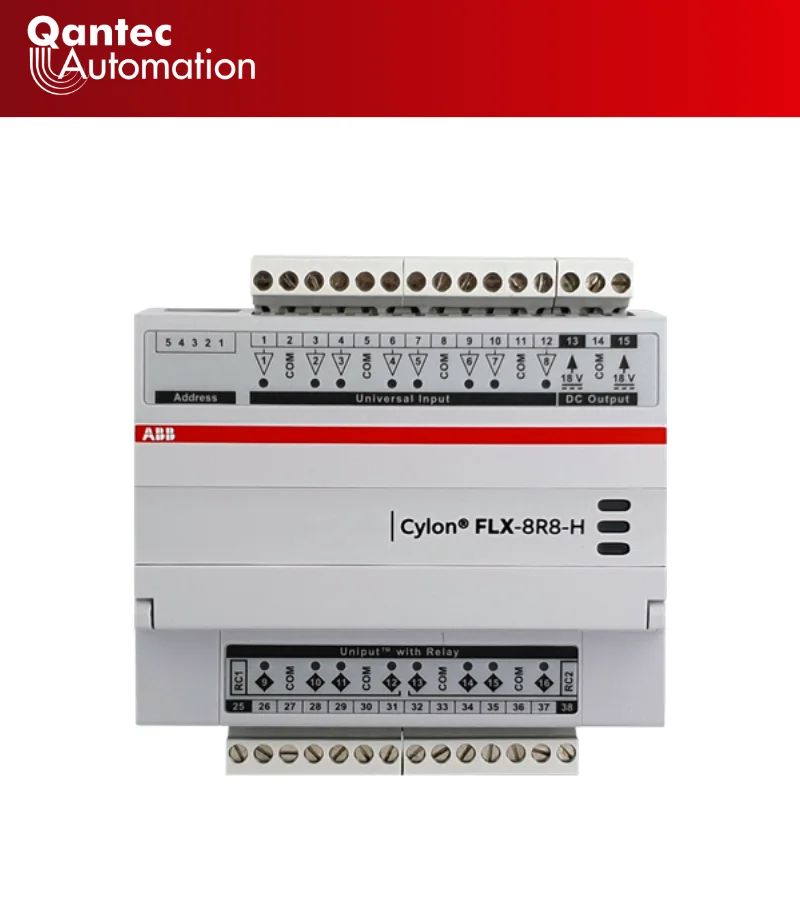

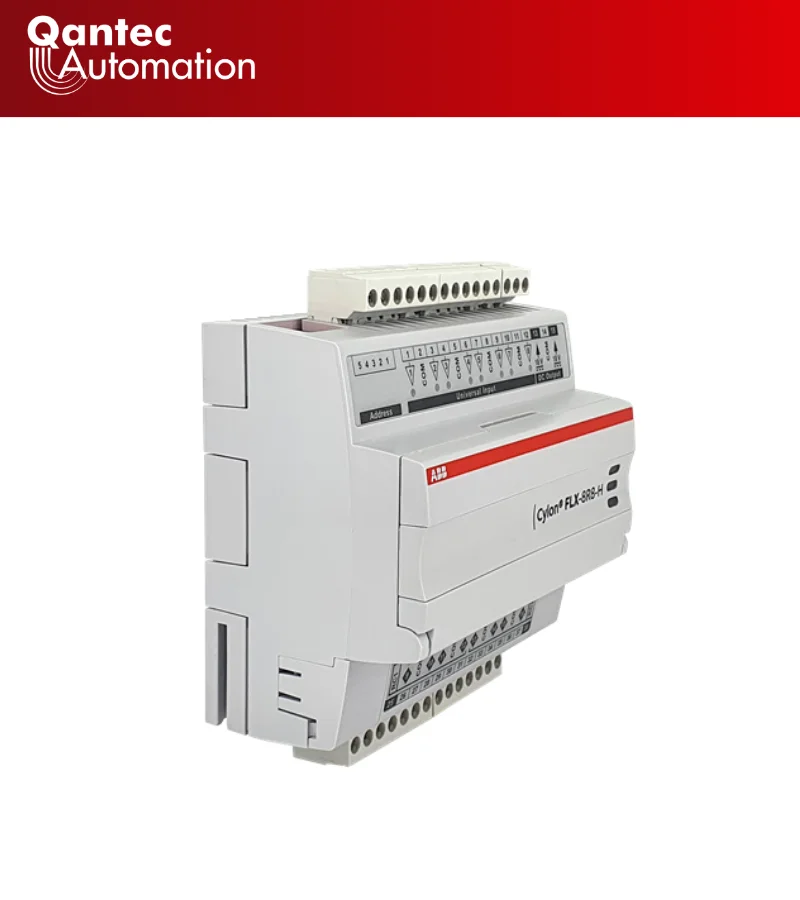

ABB FLX-8R8-H (1M101102)

SKU: 2CQG200707R1021 Brand:

$1,045.00 EX GST

Add to Quote
Compare

Share:

Product Description

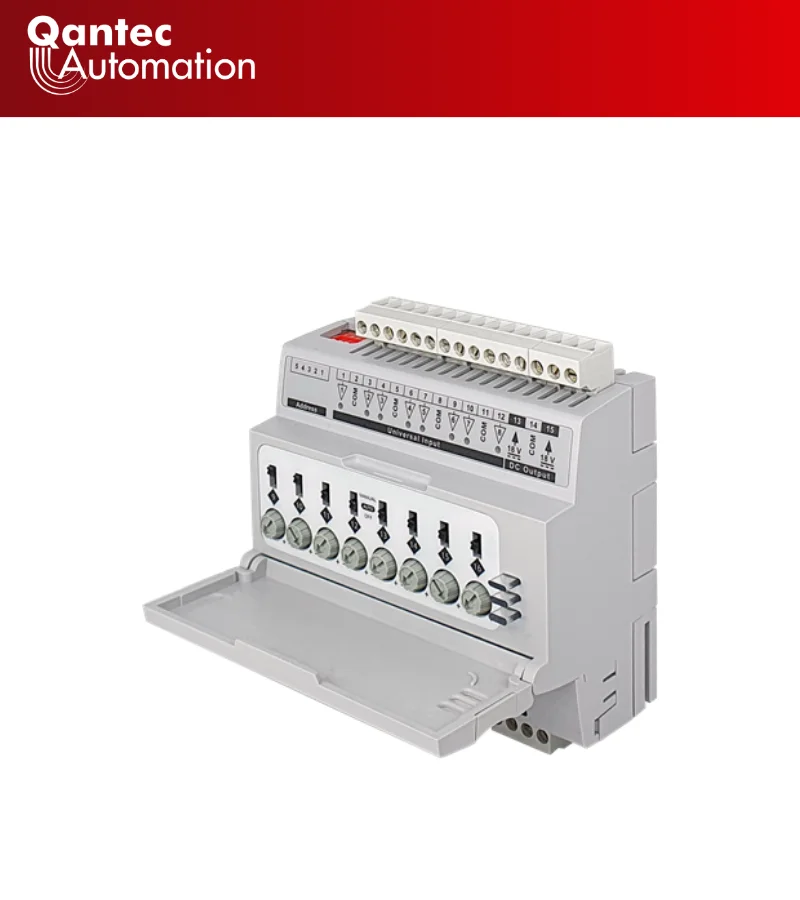

16-Point Field Level eXpansion (FLX) I/O module with HOA switches and potentiometers for CBX-8R8. Module features 8 UniPutsTM with Relay outputs (software configurable for AI, AO, DI or DO-R (Relay)) and 8 UI. A maximum of three FLX modules may be added to a single CBX-8R8.

Product Specification

SpecificationDetails
Product ID2CQG200707R1021
EAN5391539122512
Product Type1M101102
Product NameFLX-8R8-H
Product CategoryExpansion Modules
Description16-Point Field Level eXpansion (FLX) I/O module with HOA switches and potentiometers for CBX-8R8. Module features 8 UniPuts™ with Relay outputs (software configurable for AI, AO, DI or DO-R (Relay)) and 8 UI. A maximum of three FLX modules may be added to a single CBX-8R8.
Price excluding GST1,045.50
ManualView Manual
Air Temperature-25 … 50 °C
Degree of ProtectionIP20
Technical InformationView Datasheet
CommunicationFLX-Bus
InputsUniversal 8
Analog InputsAnalog (0 … 10 V / 4 … 20 mA) 8
Power Consumption5W
Width, Height, Depth, Weight100mm, 57mm, 90mm, 0.2kg
ROHS DeclarationView Document
ROHS InformationFollowing EU Directive 2011/65/EU
Conflict Minerals Reporting Template (CMRT)Download Excel
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BB2B
Declaration of Conformity – CEView Certificate
EU Data Act Compliance2025 Applicable – Compliant
ETIM 9EC010957 – Free programmable controller extension
ETIM 10EC010957 – Free programmable controller extension
