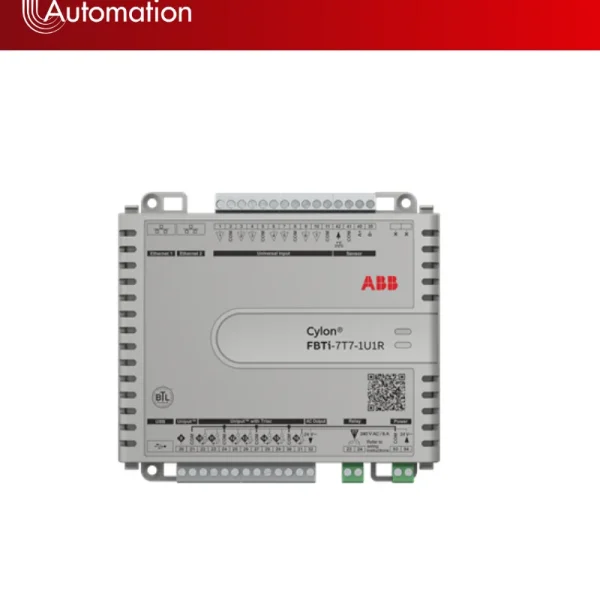

ABB FBTi-7T7-1U1R (1M820000)
ABB FBTi-7T7-1U1R (1M820000) $1,059.22 ex GST
Back to products

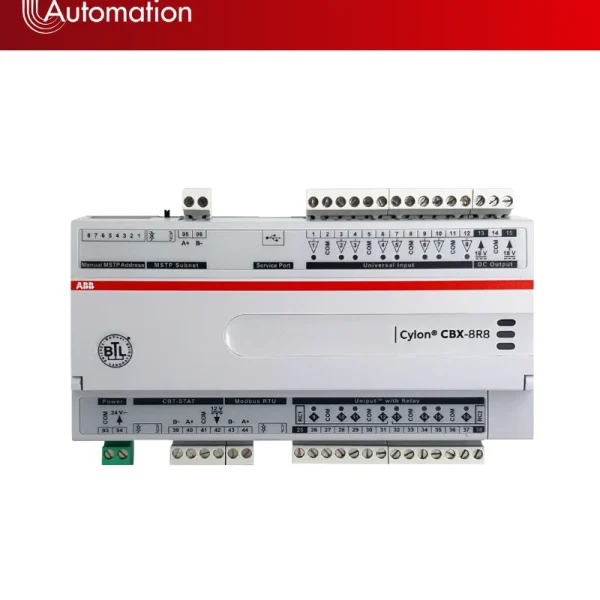

ABB CBX-8R8 (1M100100)
ABB CBX-8R8 (1M100100) $1,032.75 ex GST
Click to enlarge

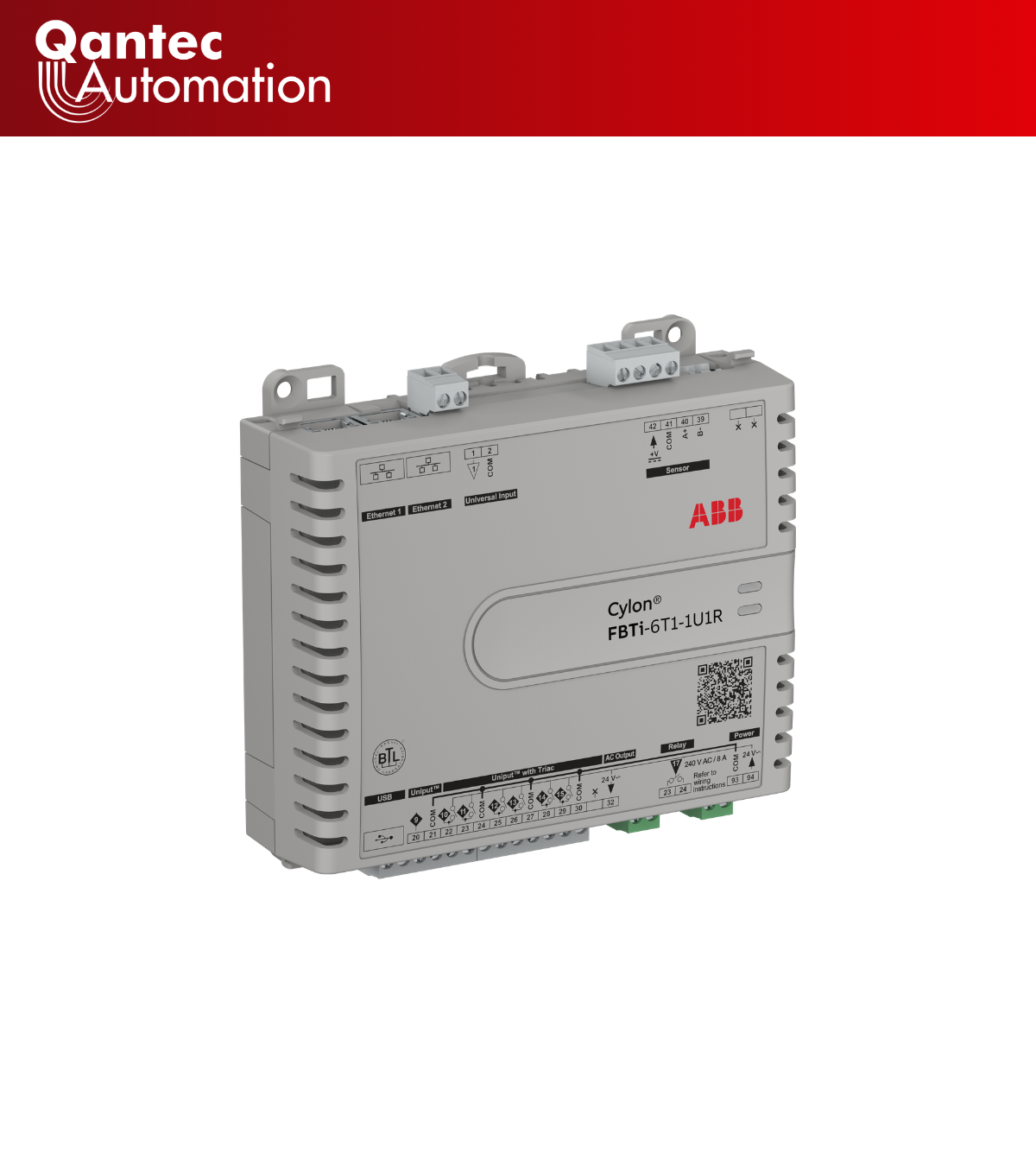

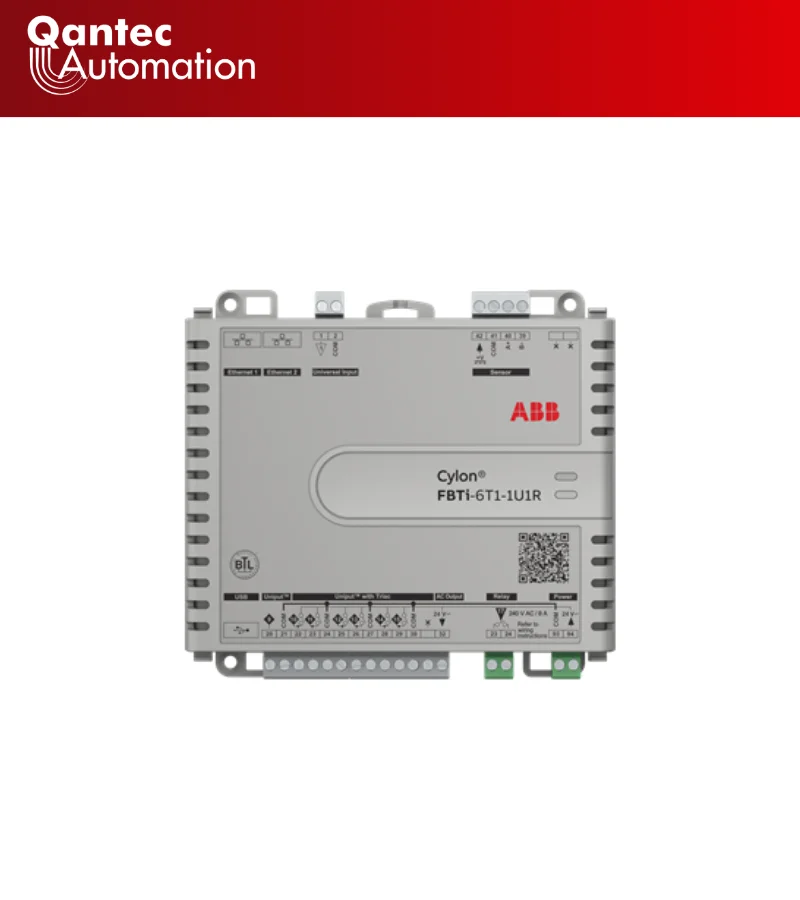

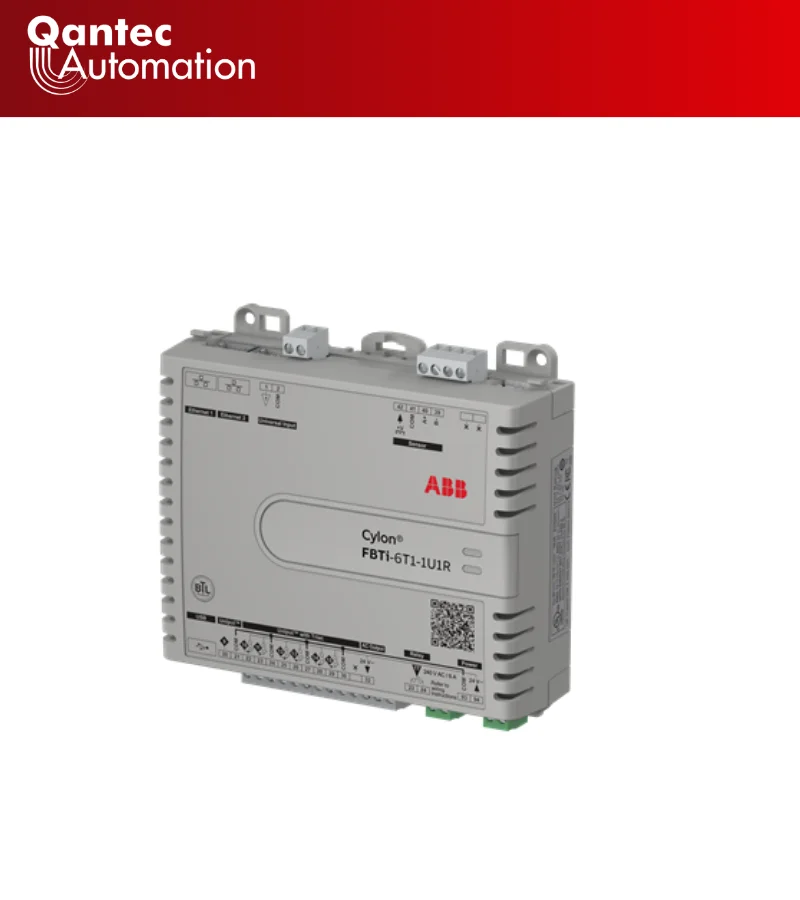

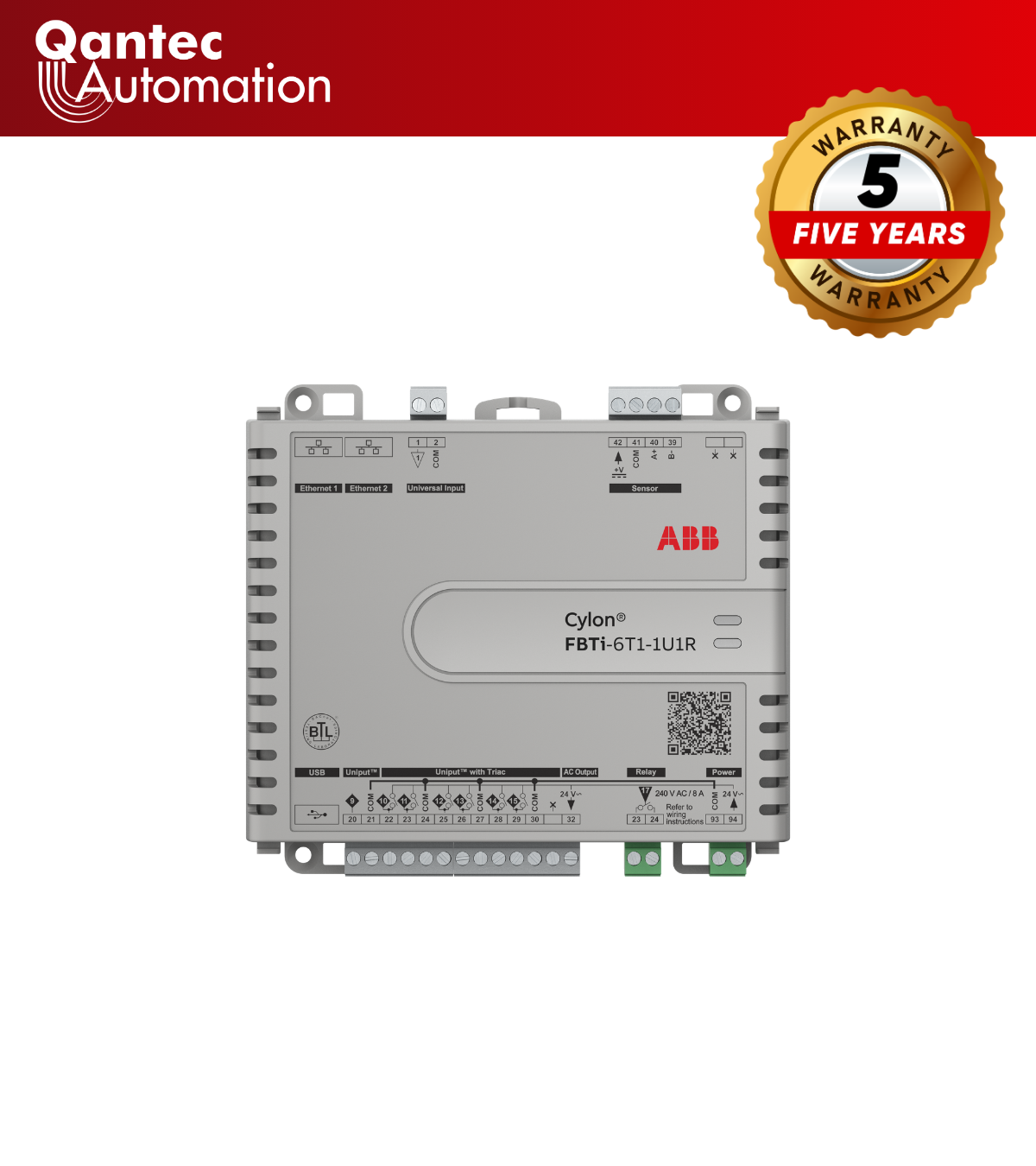

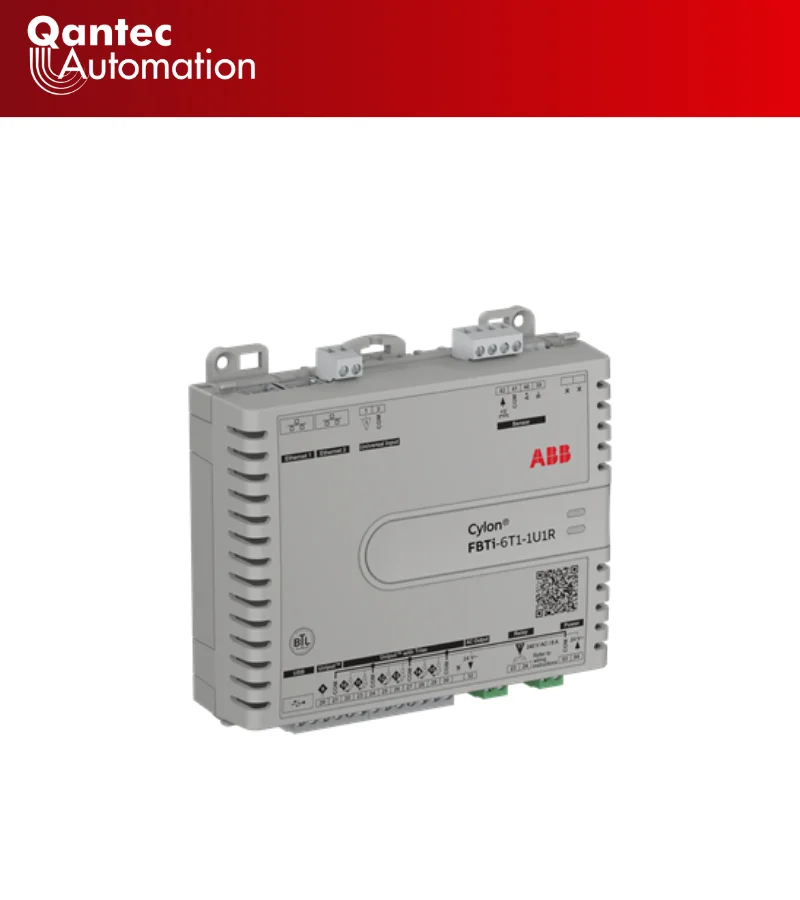

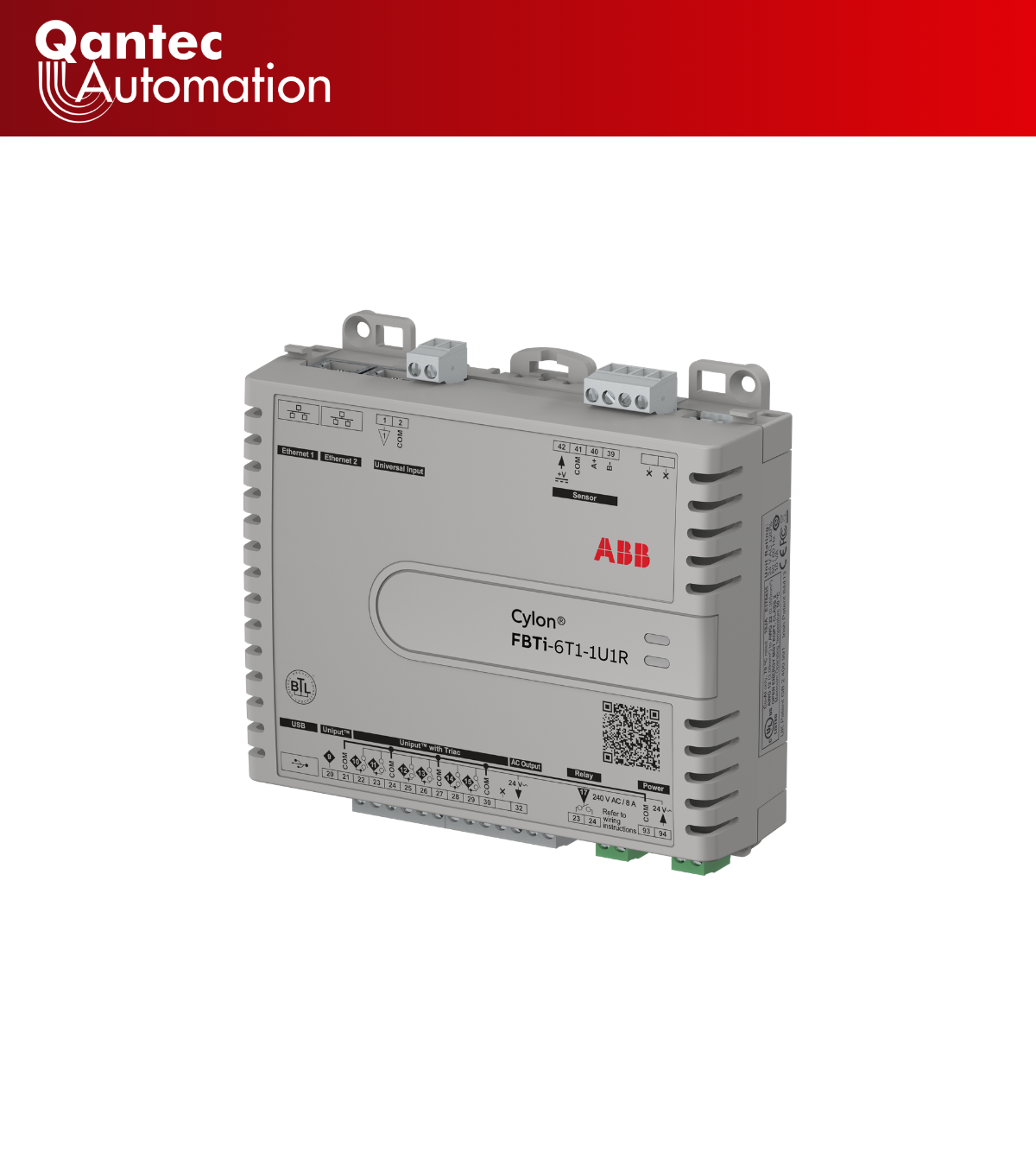

ABB FBTi-6T1-1U1R (1M820002)

SKU: 2CQG201023R1011 Brand:

$866.64 ex GST

Add to Quote
Compare

Share:

Product Description

9-Point BACnet IP/B-BC programmable controller for terminal applications such as fan coils, chilled ceilings and unit ventilation. Controller features 6 UniPutsâ„¢ with triac outputs (software configured for AI, AO, DI or DO-T (Triac), 1 UniPutâ„¢ without triac output, 1 UI and 1 Digital (Relay) Output. Freely programmable

Product Specification

Specification Details
Product ID 2CQG201023R1011
EAN 5391539126015
Product Type 1M820002
Product Name FBTi-6T1-1U1R
Product Category IP Controllers
Description 9-Point BACnet IP/B-BC programmable controller for terminal applications such as fan coils, chilled ceilings and unit ventilation. Controller features 6 UniPutsâ„¢ with triac outputs (software configured for AI, AO, DI or DO-T (Triac)), 1 UniPutâ„¢ without triac output, 1 UI and 1 Digital (Relay) Output. Freely programmable.
Price excluding GST 866.64
Manual View Manual
Air Temperature -25 … 50 °C
Degree of Protection IP20
Technical Information View Datasheet
Communication –
No. of Channels 9
Digital Inputs 7
Inputs Universal 1
Batteries 0
Analog Inputs –
Analog Outputs –
Relay Outputs 1
Digital Outputs –
Supply Voltage 24…24V
Voltage Range –
Input Voltage Type AC
Power Consumption –
Width, Height, Depth, Weight 151mm, 137mm, 49mm, 0.3kg
ROHS Declaration View Document
ROHS Information Following EU Directive 2011/65/EU
Conflict Minerals Reporting Template (CMRT) Download Excel
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B B2B
Declaration of Conformity – CE View Certificate
EU Data Act Compliance 2025 Applicable – Compliant
ETIM 9 EC011487 – Free programmable controller
ETIM 10 EC011487 – Free programmable controller
