$1,102.00 EX GST
Share:
16-Point BACnet IP/B-BC programmable controller for terminal applications such as heat pumps, roof top units, fan coils, chilled ceilings, and small air handling units. Controller features 7 UniPuts™ with triac outputs (software configured for AI, AO, DI or DO-T (Triac), 1 UniPut™ without triac output, 7 UI and 1 Digital (Relay) Output. Freely programmable.
| Specification | Details |
|---|---|
| Product ID | 2CQG201022R1011 |
| EAN | 5391539126008 |
| Product Type | 1M820000 |

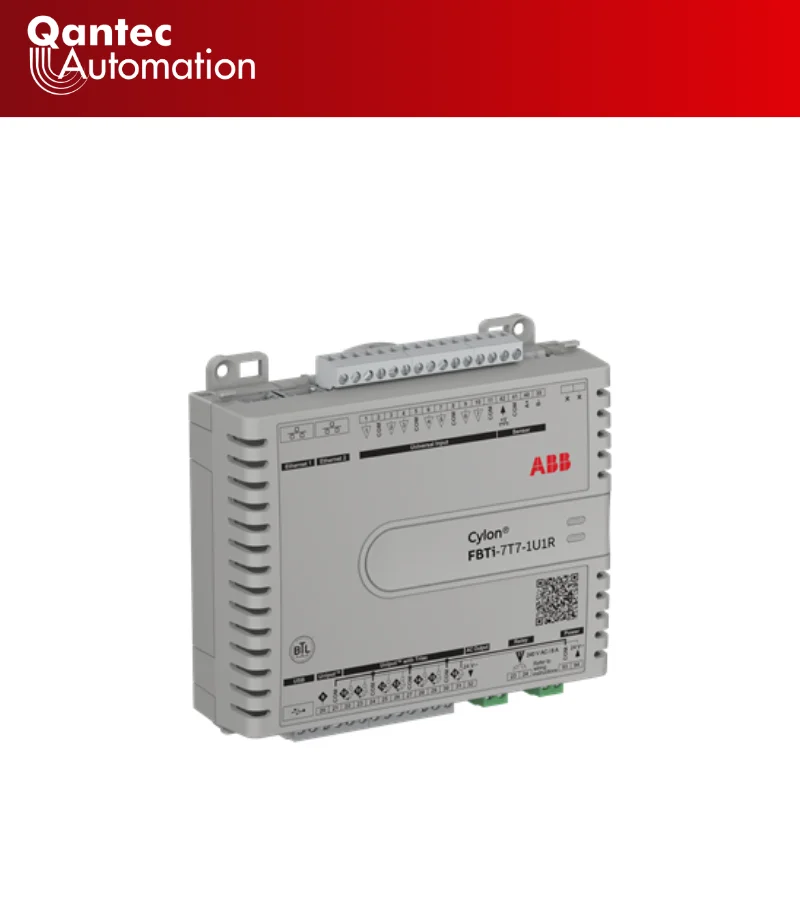

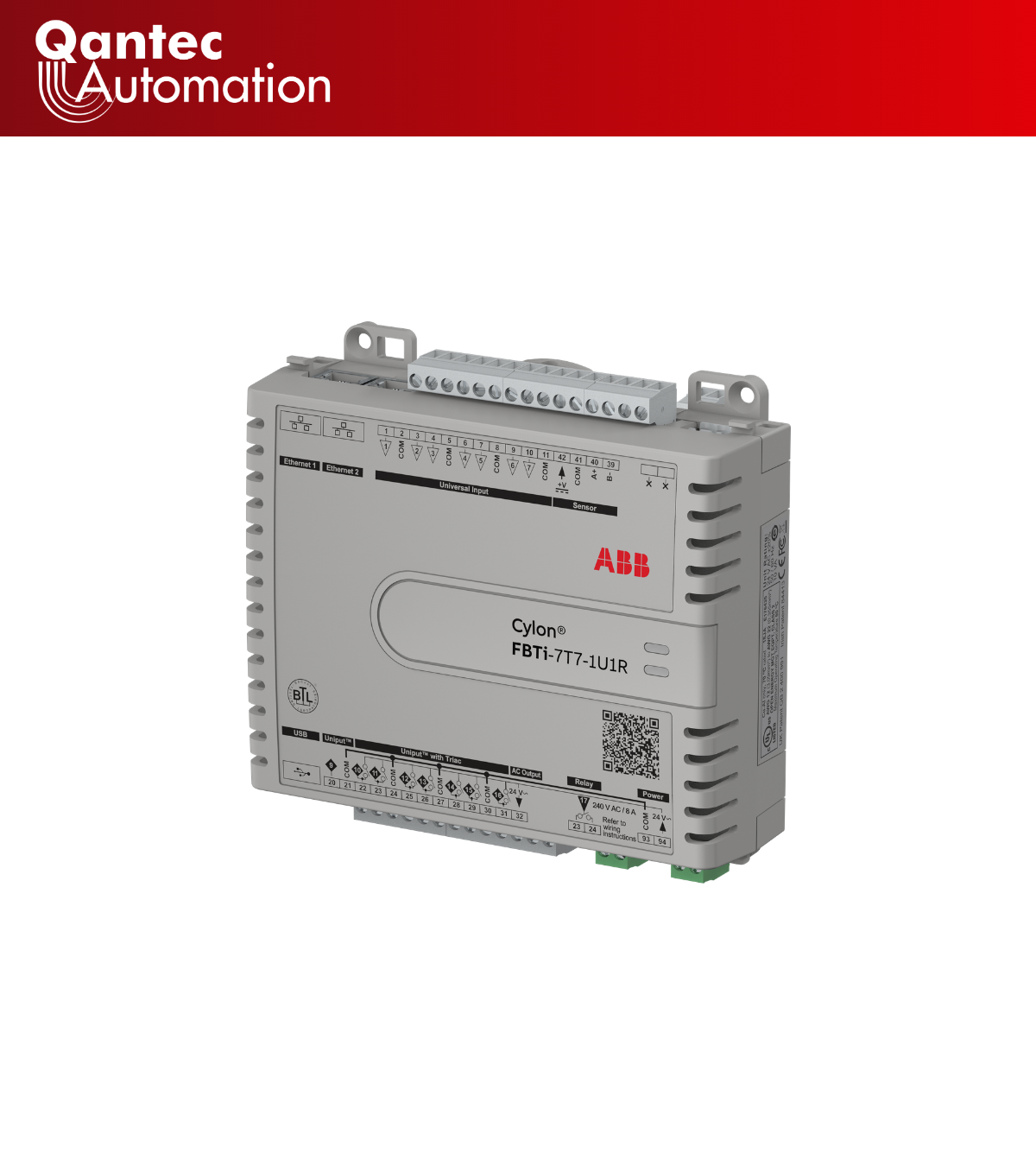

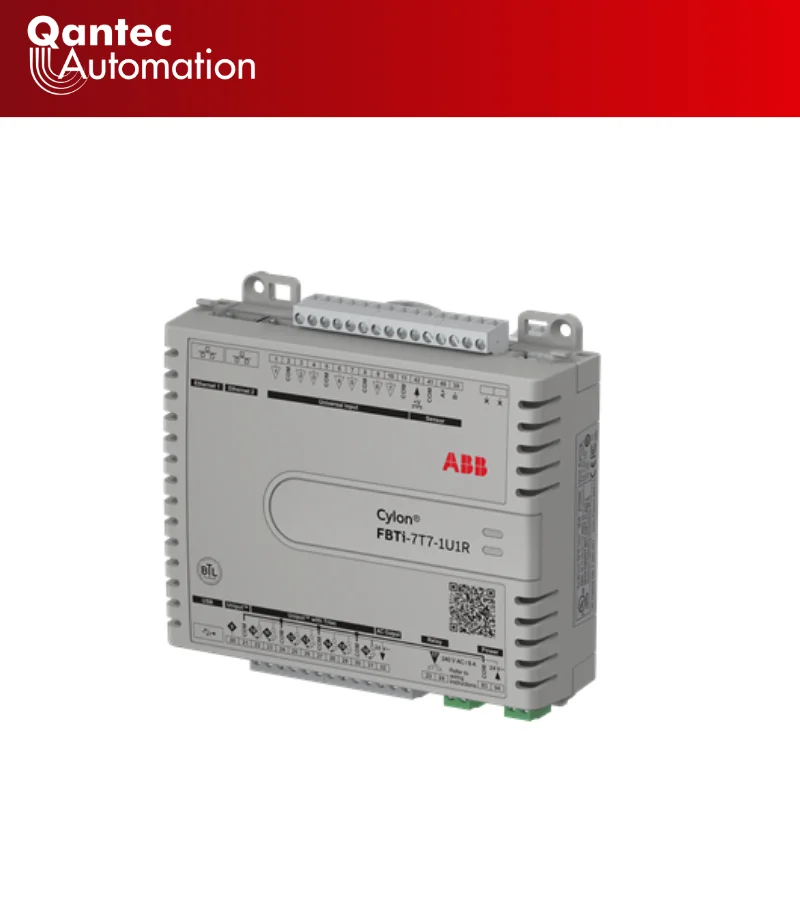

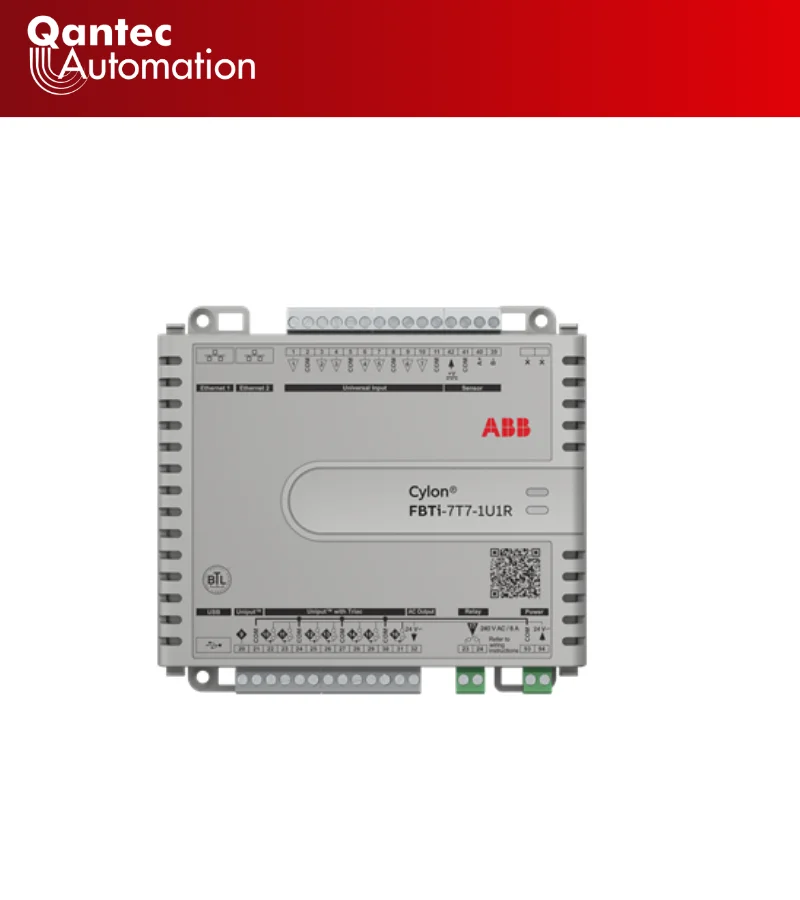

| Product Name | FBTi-7T7-1U1R |
| Product Category | IP Controllers |
| Description | 16-Point BACnet IP/B-BC programmable controller for terminal applications such as heat pumps, roof top units, fan coils, chilled ceilings, and small air handling units. Controller features 7 UniPuts™ with triac outputs (software configured for AI, AO, DI or DO-T (Triac)), 1 UniPut™ without triac output, 7 UI and 1 Digital (Relay) Output. Freely programmable. |
| Price excluding GST | 1,101.59 |
| Manual | View Manual |
| Air Temperature | -25 … 50 °C |
| Degree of Protection | IP20 |
| Technical Information | View Datasheet |
| Communication | – |
| No. of Channels | 16 |
| Digital Inputs | 1 |
| Inputs | Universal 7 |
| Batteries | 0 |
| Analog Inputs | – |
| Analog Outputs | – |
| Relay Outputs | 1 |
| Digital Outputs | – |
| Supply Voltage | 24…24V |
| Voltage Range | – |
| Input Voltage Type | AC |
| Power Consumption | – |
| Width, Height, Depth, Weight | 151mm, 137mm, 49mm, 0.3kg |
| ROHS Declaration | View Document |
| ROHS Information | Following EU Directive 2011/65/EU |
| Conflict Minerals Reporting Template (CMRT) | Download Excel |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | B2B |
| Declaration of Conformity – CE | View Certificate |
| EU Data Act Compliance | 2025 Applicable – Compliant |
| ETIM 9 | EC011487 – Free programmable controller |
| ETIM 10 | EC011487 – Free programmable controller |
In stock
