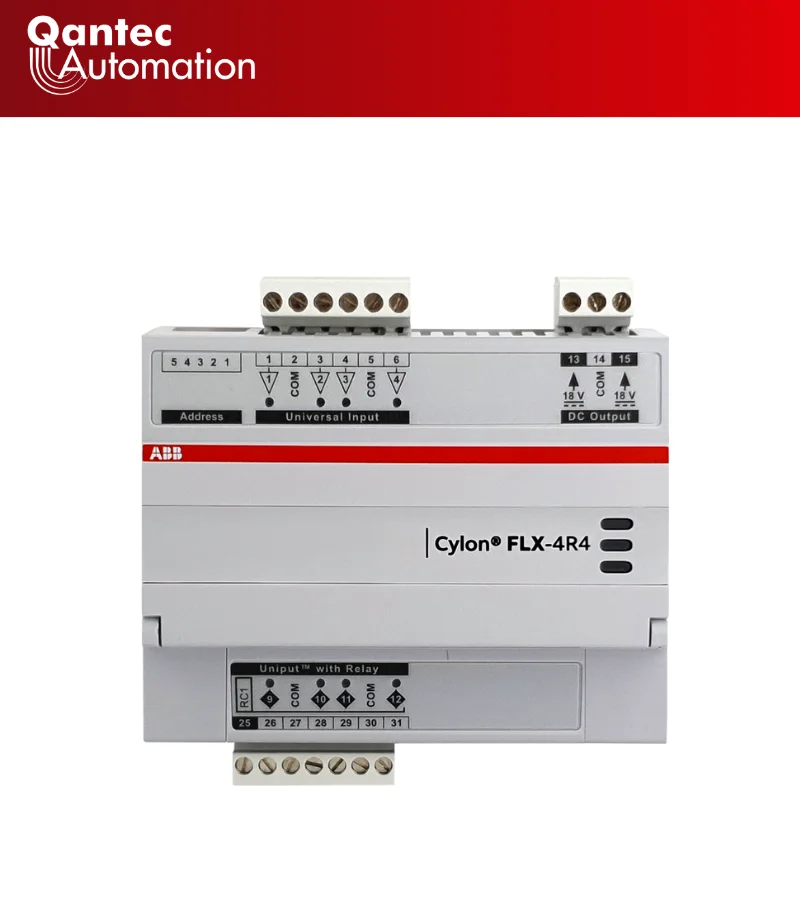

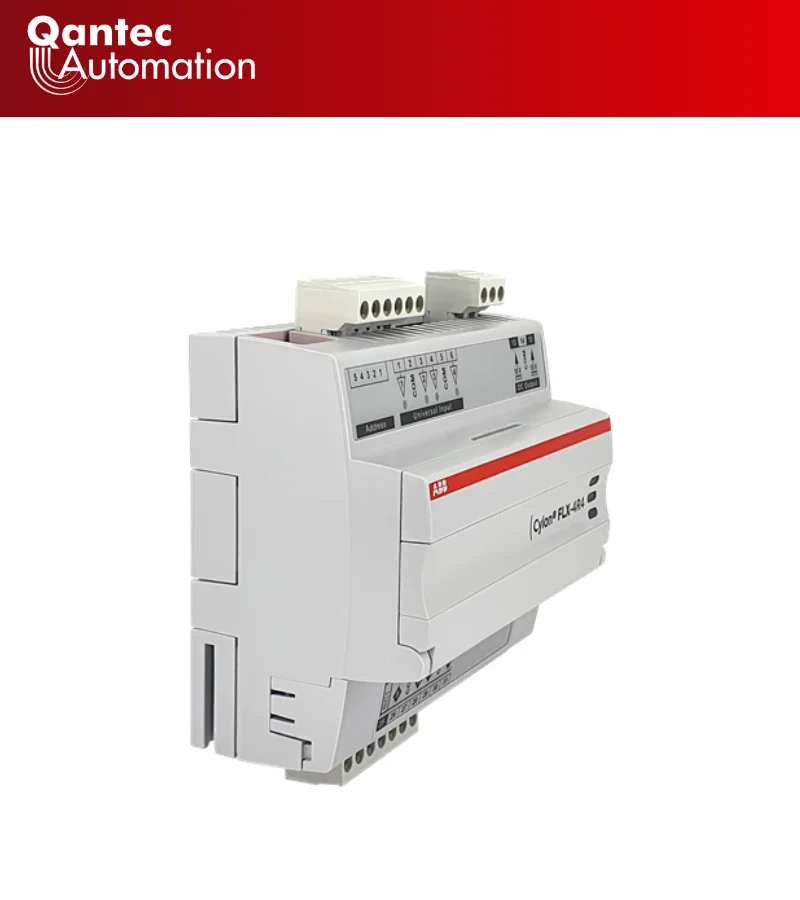

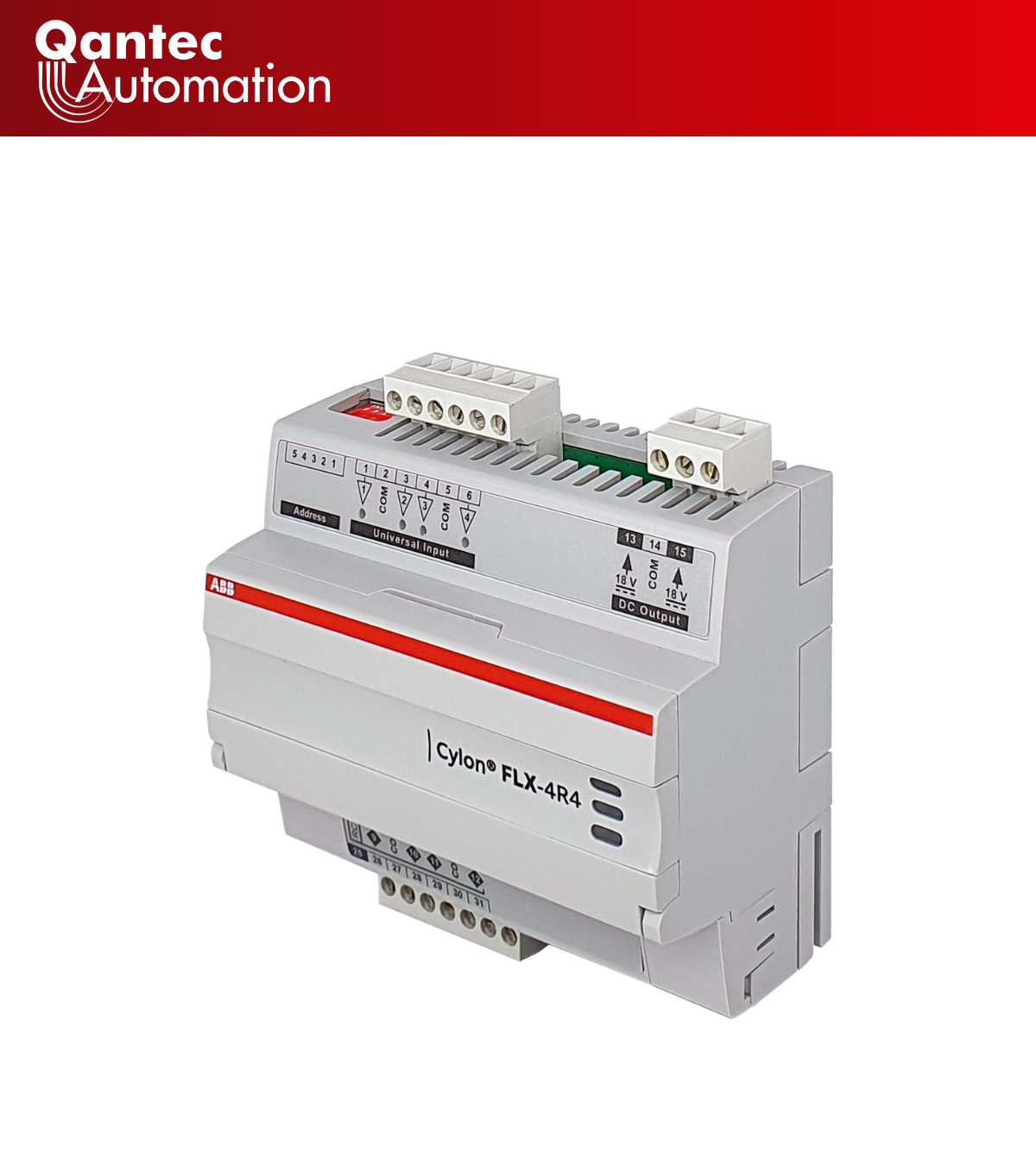

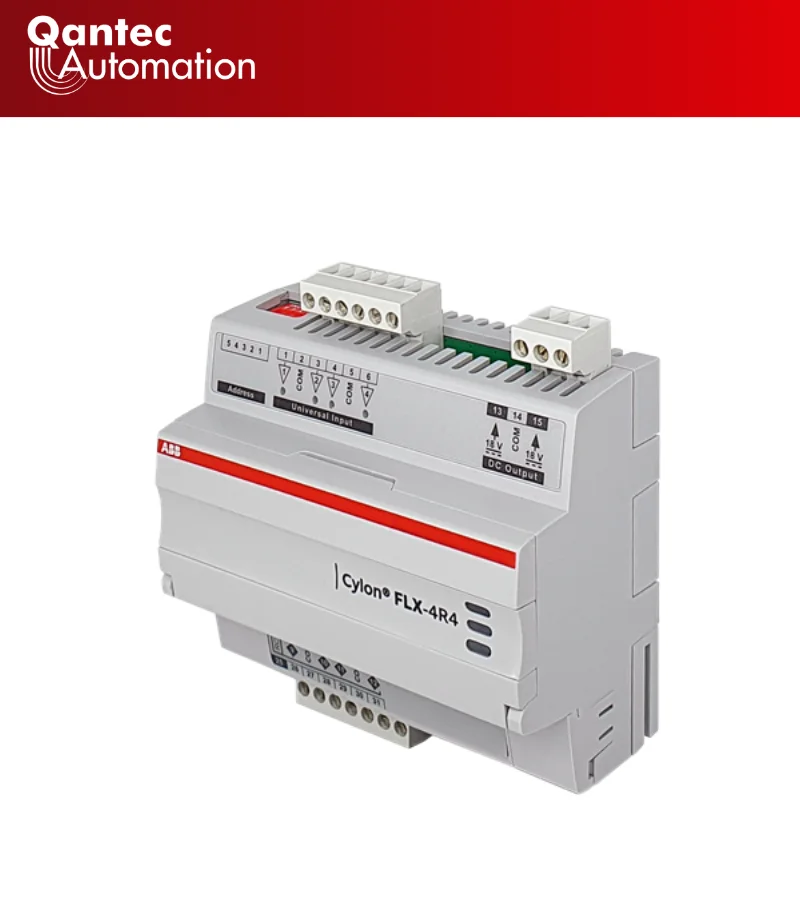

8-Point Field Level eXpansion (FLX) I/O module for CBX. Module features 4 UniPuts™ with Relay outputs and 4 UI. A maximum of three FLX modules may be added to a single CBX.
Product Description
Product Specification
| Specification | Details |
|---|---|
| Product ID | 2CQG200704R1021 |
| EAN | 5391539122482 |
| Product Type | 1M101106 |
| Product Name | FLX-4R4 |
| Product Category | Expansion Modules |
| Description | 8-Point Field Level eXpansion (FLX) I/O module for CBX. Module features 4 UniPuts™ with Relay outputs and 4 UI. A maximum of three FLX modules may be added to a single CBX. |
| Price excluding GST | 571.9 |
| Manual | View Manual |
| Air Temperature | -25 … 50 °C |
| Degree of Protection | IP20 |
| Technical Information | View Datasheet |
| Communication | FLX-Bus |
| No. of Channels | 8 |
| Digital Inputs | 4 |
| Inputs | Universal 4 |
| Batteries | 0 |
| Analog Inputs | 4 |
| Analog Outputs | 4 |
| Supply Voltage | 24…24V |
| Voltage Range | 20.4…27.6V |
| Input Voltage Type | AC/DC |
| Power Consumption | 3.8W |
| Width, Height, Depth, Weight | 100mm, 57mm, 90mm, 0.2kg |
| ROHS Declaration | View Document |
| ROHS Information | Following EU Directive 2011/65/EU |
| Conflict Minerals Reporting Template (CMRT) | Download Excel |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | B2B |
| Declaration of Conformity – CE | View Certificate |
| EU Data Act Compliance | 2025 Applicable – Compliant |
| ETIM 9 | EC010957 – Free programmable controller extension |
| ETIM 10 | EC010957 – Free programmable controller extension |
