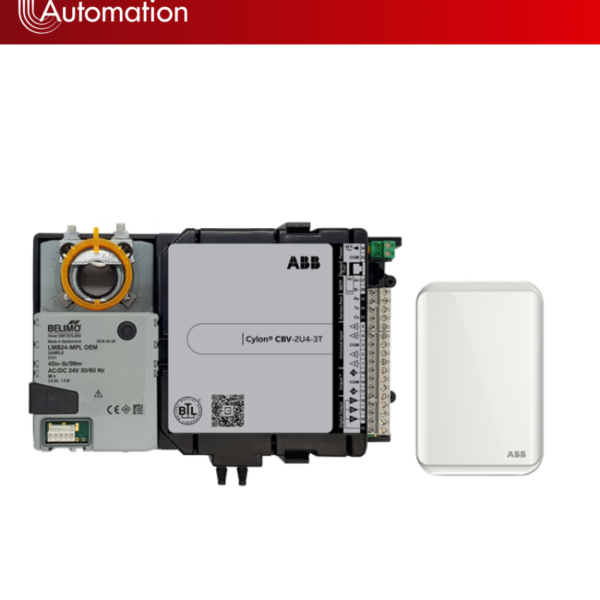

ABB CBV-2U4-3T-SI and FA-T
ABB CBV-2U4-3T-SI and FA-T Original price was: $1,108.93.Current price is: $235.40. ex GST
Back to products

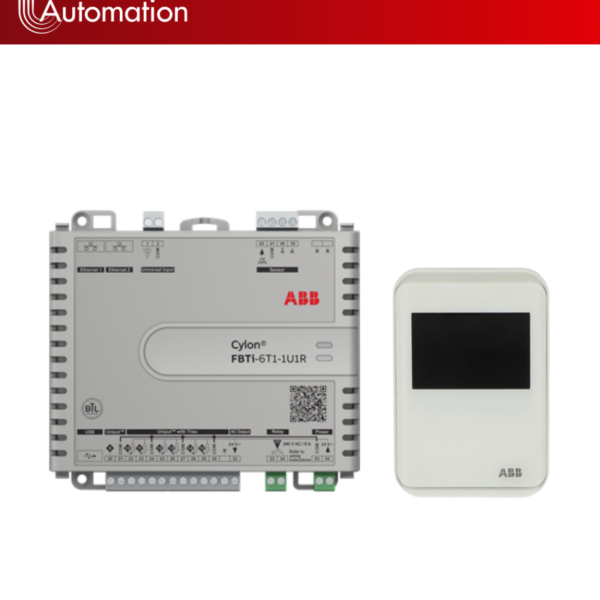

ABB FBTi-6T1-1U1R and FA-THC-D
ABB FBTi-6T1-1U1R and FA-THC-D Original price was: $1,369.45.Current price is: $674.40. ex GST
Sale
Click to enlarge

ABB FBVi-2U4-4T-SI and FA-T

SKU: 2BUNFBV016R1021 Brand:

Original price was: $1,222.50.Current price is: $326.40. ex GST

Add to Quote
Compare

Share:

Product Description

The ABB FBVi‑2U4‑4T‑SI controller and the ABB FA‑T sensor deliver a streamlined zone-control package. The controller is a freely programmable BACnet/IP building controller, designed for VAV (Variable Air Volume) zoning applications and equipped with 2 UniPuts™, 4 universal inputs and 4 triac outputs, plus an integrated airflow sensor and dedicated room sensor input. Meanwhile the FA-T is an analog temperature sensor that can be connected directly to the controller to provide zone-temperature feedback and a manual override switch. Together, this combination allows the controller to regulate airflow and temperature based on real-time zone feedback, enabling precise comfort control and energy-efficiency in commercial HVAC systems. The FA-T’s compact passive design complements the advanced networked capabilities of the controller, making the bundle a practical solution for modern HVAC zoning.

Product Specification

CBV-2U4-3T-SI

Specification Details
Product ID 2CQG201016R1021
EAN 5391539125315
Product Type 1M710121
Product Name FBVi-2U4-4T-SI
Product Category IP VAV Controller
Description 10-Point BACnet/IP B-BC programmable VAV controller for control and monitoring of small plant or HVAC equipment. Controller features 2 UniPuts™ (software configurable for AI, AO, DI or DO-R (Relay)), 4 DO and 4 UI. Preloaded Strategy with Metric units.
Manual View Manual
Air Temperature -25 … 50 °C
Degree of Protection IP20
Technical Information View Datasheet
Communication IP
No. of Channels 10
Digital Inputs 4
Inputs Universal 4
Analog Outputs Triac 4, Actuator 1
Supply Voltage 24…24V
Voltage Range 28.8V
Input Voltage Type AC
Power Consumption 20 V.A
Width, Height, Depth, Weight 130mm, 100mm, 100mm, 0.9kg
ROHS Declaration View Document
ROHS Information Following EU Directive 2011/65/EU
Conflict Minerals Reporting Template (CMRT) Download Excel
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B B2B
Declaration of Conformity – CE View Certificate
EU Data Act Compliance 2025 Applicable – Compliant
ETIM 9 EC011487 – Free programmable controller
ETIM 10 EC011487 – Free programmable controller

FA-T

Specification Details
Product ID 2CQG505560R1011
EAN 5391539125711
Product Type FA-T
Product Name FA-T  Sensor Analog Temperature only
Product Category Air Sensor
Description ABB FusionAir Sensor Analog Temperature only.
Manual View Manual
Air Temperature 0 … 50 °C
Degree of Protection IP30
Technical Information View Datasheet
Inputs ventilation 0
Width, Height, Depth, Weight 86mm, 129mm, 19mm, 0.1kg
ROHS Declaration View Document
ROHS Information Following EU Directive 2011/65/EU
Conflict Minerals Reporting Template (CMRT) Download Excel
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B B2B
Declaration of Conformity – CE View Certificate
EU Data Act Compliance 2025 Applicable – Compliant
ETIM 9 EC003263 – Smart thermostat
ETIM 10 EC003263 – Smart thermostat
