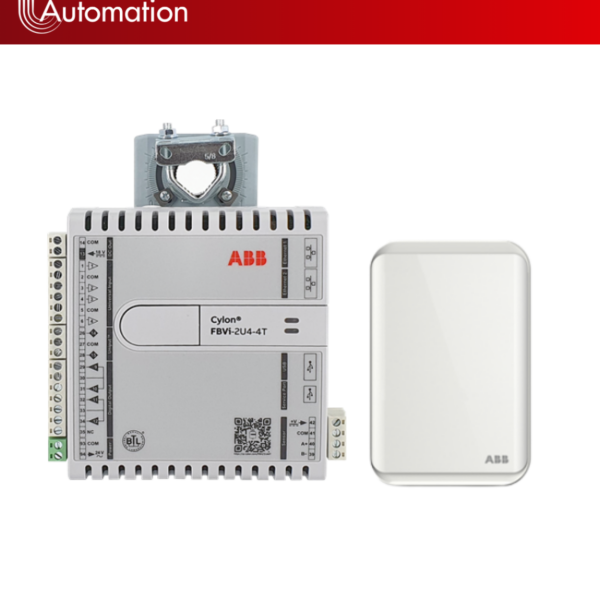

ABB FBVi-2U4-4T-SI and FA-T
ABB FBVi-2U4-4T-SI and FA-T Original price was: $1,222.50.Current price is: $326.40. ex GST
Sale
Click to enlarge

ABB CBV-2U4-3T-SI and FA-T

SKU: 2BUNCBV513R0021 Brand:

Original price was: $1,108.93.Current price is: $235.40. ex GST

Add to Quote
Compare

Share:

Product Description

The ABB CBV-2U4-3T-SI controller and ABB FA-T sensor offer a streamlined HVAC control solution. The CBV unit is a fully programmable BACnet MS/TP building-automation controller designed for VAV zone applications, supporting 2 UniPuts™, 4 universal inputs, and 3 triac outputs, and integrating airflow measurement for efficient zone control. The FA-T sensor is a passive temperature sensor (and optional side-switch) that connects to the controller’s analog/digital inputs to provide reliable space-temperature feedback for zone control. Together, the bundle allows the controller to monitor both airflow and zone temperature, enabling precise modulation of dampers, fans or heating coils to maintain comfort and optimise energy use. The FA-T’s compact design and simple wiring complement the CBV’s advanced control features, making this pairing ideal for commercial building zones requiring smart, integrated automation.

Product Specification

CBV-2U4-3T-SI

Specification Details
Product ID 2CQG201513R0021
EAN 5391539123052
Product Type 1M710115
Product Name CBV-2U4-3T-SI
Product Category Bacnet MSTP VAV Controllers
Description BACnet B-AAC single-duct VAV terminal unit controller with integrated actuator. Controller features 2 UniPuts™ (software configured for AI, AO, DI or DO), 4 UI and 3 DO (Triac). Built-in differential pressure transducer (0-1.3″w.c., 0…320 Pa) and actuator (45in-lb, 5 Nm). Freely programmable, c/w pre-loaded factory configuration strategy with SI units (°C). Environmental: 0 … 50 °C, IP20.
Manual View Manual
Air Temperature 0 … 50 °C
Degree of Protection IP20
Technical Information View Datasheet
Communication MS/TP
Digital Inputs 5
Analog Inputs 6
Analog Outputs 2
Supply Voltage 24 … 24 V
Voltage Range 20.4 … 27.6 V
Input Voltage Type AC
Power Consumption 55 V·A
Width, Height, Depth, Weight 150mm, 50mm, 225mm, 0.7kg
ROHS Declaration View Document
ROHS Information Following EU Directive 2011/65/EU
Conflict Minerals Reporting Template (CMRT) Download Excel
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B B2B
Declaration of Conformity – CE View Certificate
EU Data Act Compliance 2025 Applicable – Compliant
ETIM 9 EC011487 – Free programmable controller
ETIM 10 EC011487 – Free programmable controller



FA-T

Specification Details
Product ID 2CQG505560R1011
EAN 5391539125711
Product Type FA-T
Product Name FA-T  Sensor Analog Temperature only
Product Category Air Sensor
Description ABB FusionAir Sensor Analog Temperature only.
Manual View Manual
Air Temperature 0 … 50 °C
Degree of Protection IP30
Technical Information View Datasheet
Inputs ventilation 0
Width, Height, Depth, Weight 86mm, 129mm, 19mm, 0.1kg
ROHS Declaration View Document
ROHS Information Following EU Directive 2011/65/EU
Conflict Minerals Reporting Template (CMRT) Download Excel
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B B2B
Declaration of Conformity – CE View Certificate
EU Data Act Compliance 2025 Applicable – Compliant
ETIM 9 EC003263 – Smart thermostat
ETIM 10 EC003263 – Smart thermostat
