NTC10k, -50…+90 °C, Housing: Polyamide white, IP65, 65 x 50 x 37.5 mm.

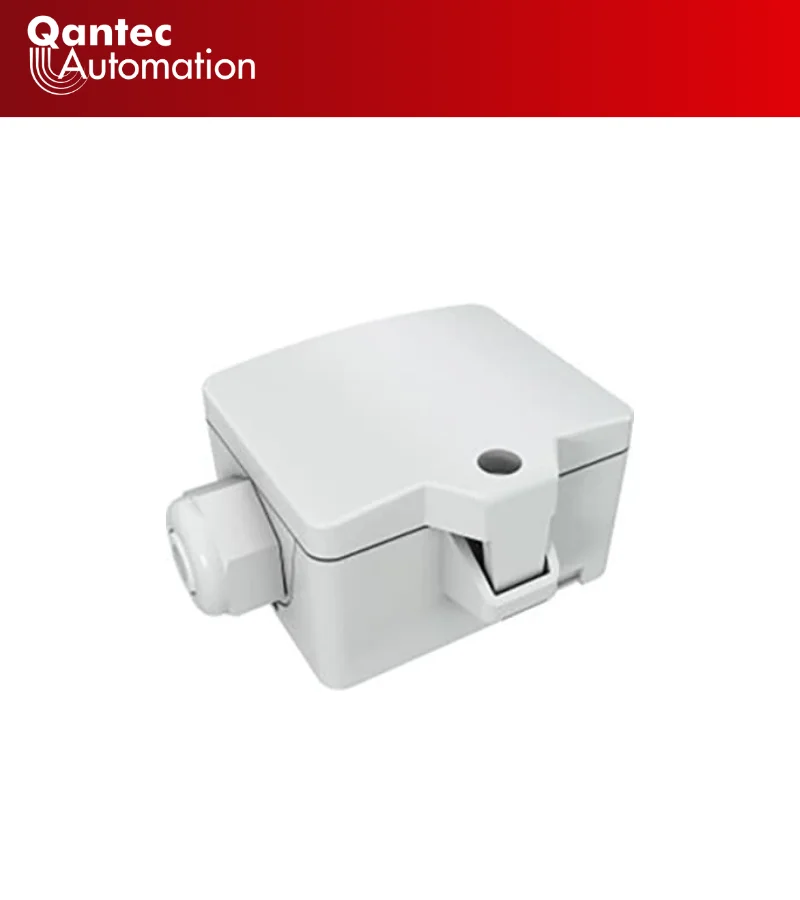

ABB Outdoor Temperature Sensor (AGS54) (1S9SW100)
$18.77 ex GST
Share:
Product Description
Product Specification
| Specification | Details |
|---|---|
| Product ID | 2CQG505101R2021 |
| EAN | 5391539124257 |
| Product Type | 1S9SW100 |
| Product Name | Outdoor Temperature Sensor (AGS54) |
| Product Category | Field Sensors |
| Description | NTC10k, -50…+90 °C, Housing: Polyamide white, IP65, 65 x 50 x 37.5 mm. |
| Price excluding GST | 18.77 |
| Air Temperature | -25 … 90 °C |
| Degree of Protection | IP65, IP43 |
| Datasheet | View Datasheet |
| Inputs | 0, wired, screw, NTC10K with Transducer |
| Color | white / beige |
| Supply Voltage | AC 21.6…26.4V / DC 15…24V |
| Dimensions (W x H x D) & Weight | 65mm, 45mm, 50mm, 0.1kg |
| CMRT | Download Excel |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2B / B2C | B2B |
| EU Data Act Compliance | 2025 Applicable – Compliant |
| ETIM 9 | EC004240 – Sensor (HVAC) |
| ETIM 10 | EC004240 – Sensor (HVAC) |
