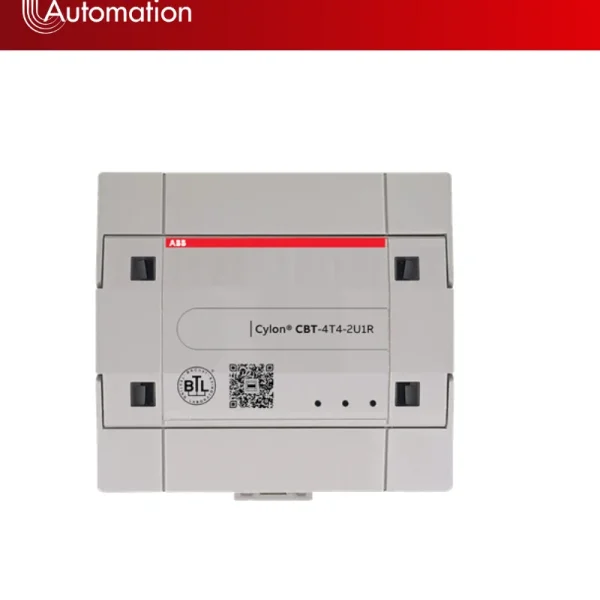

ABB CBT-4T4-2U1R (1M610105)
ABB CBT-4T4-2U1R (1M610105) $605.89 ex GST
Back to products
ABB FLX-8R8 (1M101100)
ABB FLX-8R8 (1M101100) $732.75 ex GST
Click to enlarge

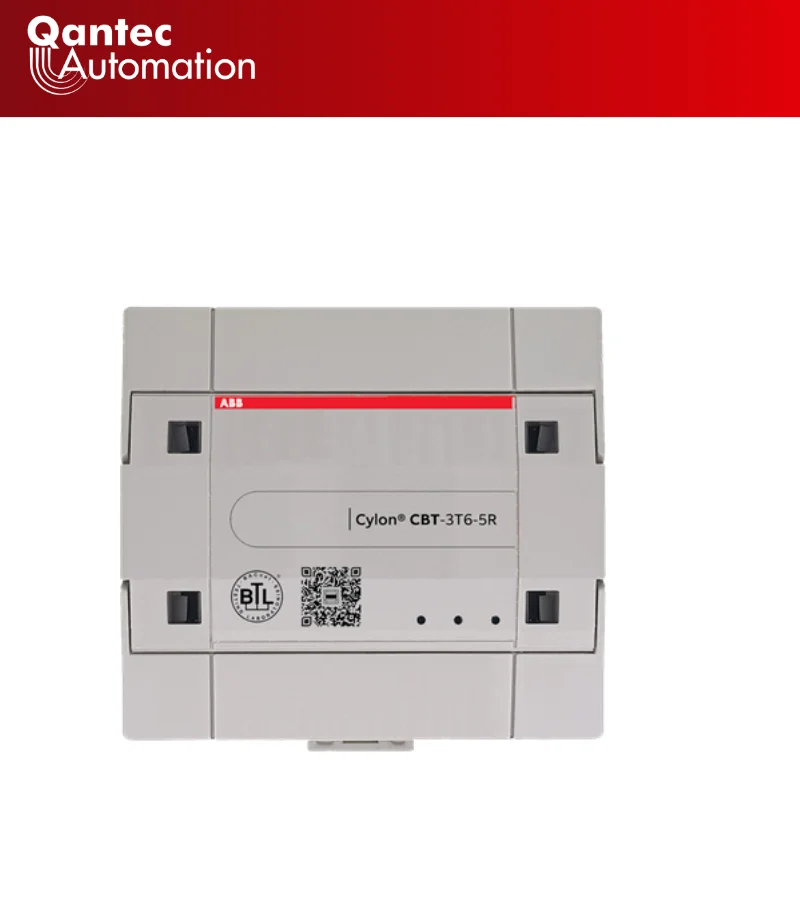

ABB CBT-3T6-5R (1M810120)

SKU: 2CQG201309R1021 Brand:

$702.36 ex GST

Add to Quote
Compare

Share:

Product Description

14-Point BACnet B-AAC programmable controller for terminal applications such as heat pump, roof top unit, fan coil, chilled ceiling, and small air handling units. Controller features 3 UniPutsâ„¢ with Triac outputs (software configured for AI, AO, DI or DO-T (Triac), 6 UI and 5 Digital (Relay) Outputs. . Freely programmable, no pre-loaded strategy

Product Specification

Specification Details
Product ID 2CQG201309R1021
EAN 5391539122918
Product Type 1M810120
Product Name CBT-3T6-5R
Product Category Bacnet MSTP controller
Description 14-Point BACnet B-AAC programmable controller for terminal applications such as heat pump, roof top unit, fan coil, chilled ceiling, and small air handling units. Controller features 3 UniPutsâ„¢ with Triac outputs (software configured for AI, AO, DI or DO-T (Triac)), 6 UI, and 5 Digital (Relay) Outputs. Freely programmable, no pre-loaded strategy.
Price excluding GST 702.36
Manual View Manual
Air Temperature 0 … 50 °C
Degree of Protection IP20
Technical Information View Datasheet
Communication MS/TP
No. of Channels 14
Digital Inputs 6
Inputs
Batteries 0
Analog Inputs 6
Analog Outputs 3
Supply Voltage 24…24V
Voltage Range 20.4…27.6V
Input Voltage Type AC/DC
Power Consumption 10 V.A
Width, Height, Depth, Weight 125mm, 40mm, 120mm, 0.3kg
ROHS Declaration View Document
ROHS Information Following EU Directive 2011/65/EU
Conflict Minerals Reporting Template (CMRT) Download Excel
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B B2B
Declaration of Conformity – CE View Certificate
EU Data Act Compliance 2025 Applicable – Compliant
ETIM 9 EC011487 – Free programmable controller
ETIM 10 EC011487 – Free programmable controller
