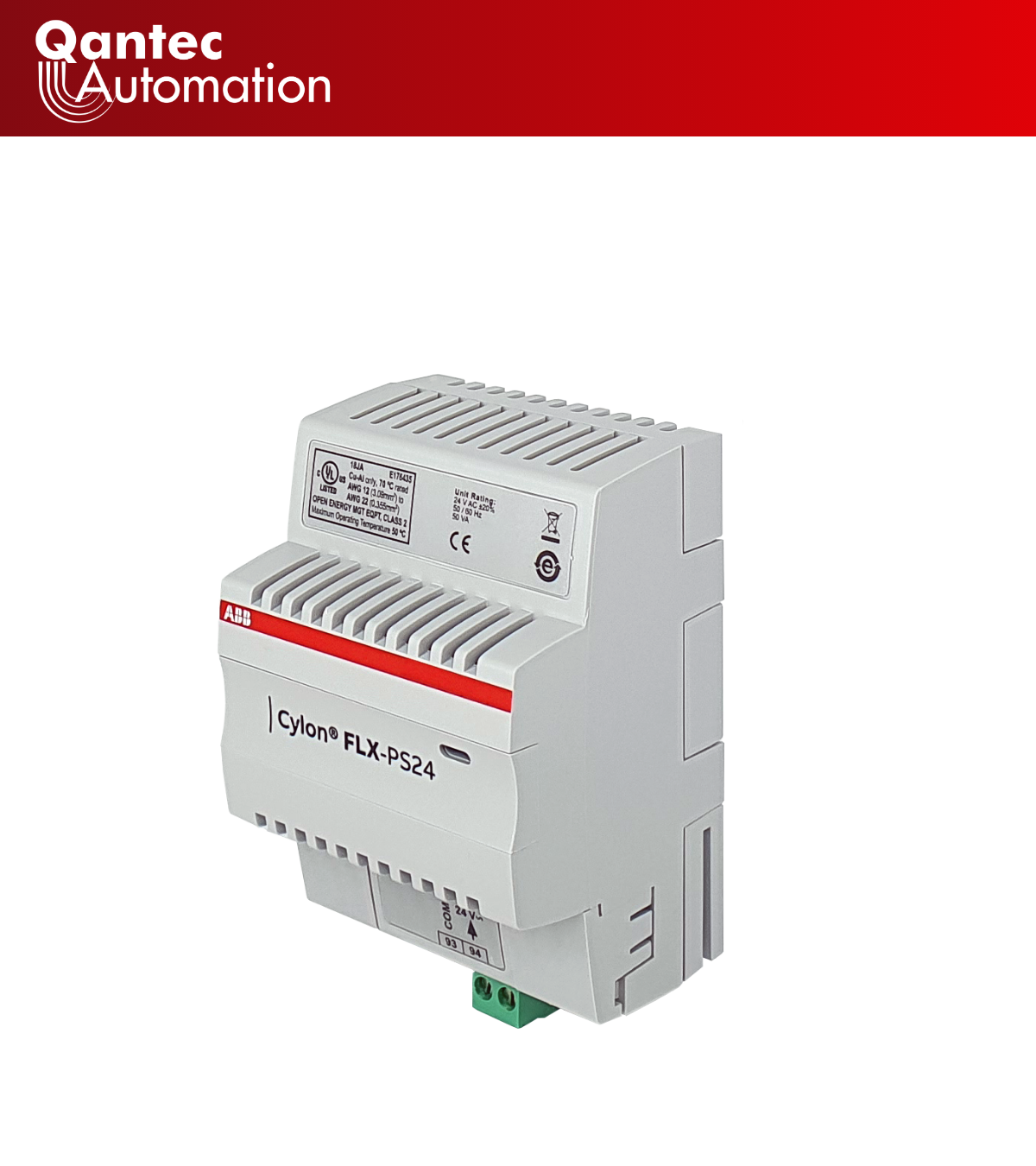

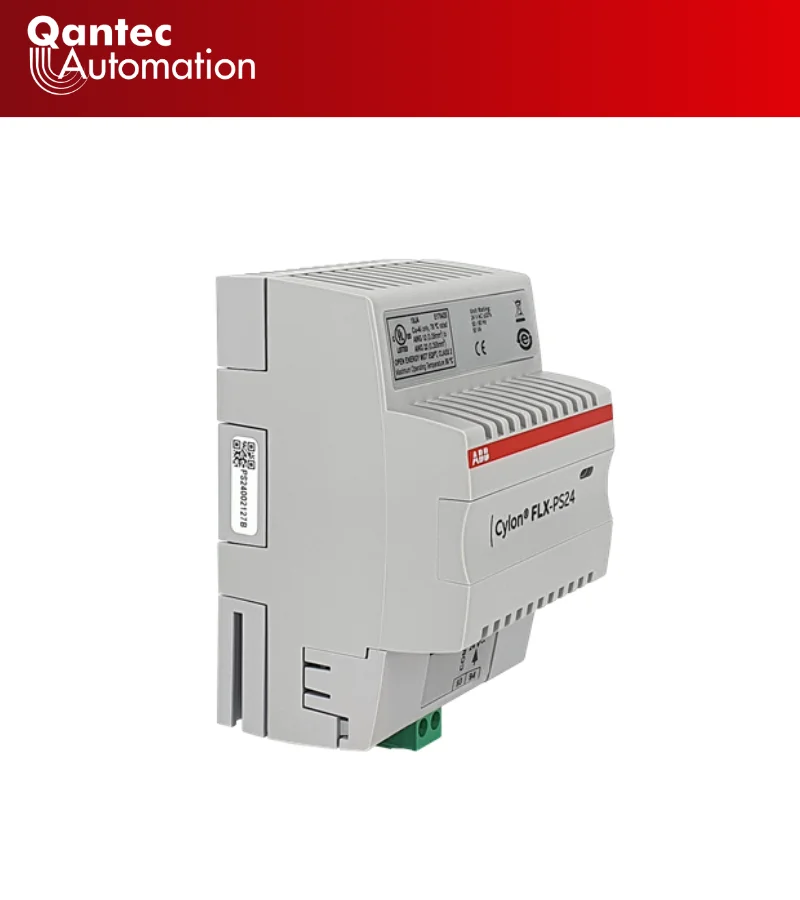

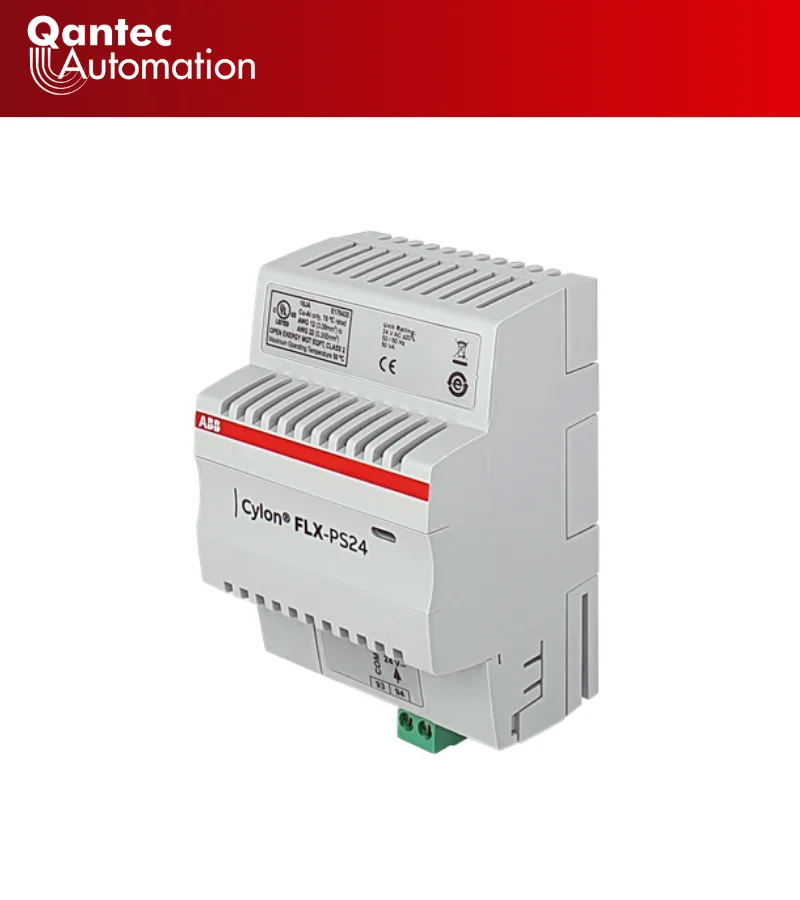

19 V DC Power supply module for FLX Field Level eXpansion IO modules and external field devices (using the FLX-RMC).
Product Description
Product Specification
| Specification | Details |
|---|---|
| Product ID | 2CQG205601R1021 |
| EAN | 5391539123403 |
| Product Type | 1M101111 |
| Product Name | FLX-PS24 |
| Product Category | Expansion Modules |
| Description | 19 V DC Power supply module for FLX Field Level eXpansion IO modules and external field devices (using the FLX-RMC). |
| Price excluding GST | 268.08 |
| Manual | View Manual |
| Air Temperature | -25 … 50 °C |
| Degree of Protection | IP20 |
| Technical Information | View Datasheet |
| Communication | FLX-Bus |
| No. of Channels | 0 |
| Digital Inputs | 0 |
| Inputs | 0 |
| Batteries | – |
| Analog Inputs | – |
| Analog Outputs | – |
| Supply Voltage | AC60Hz 24 V |
| Voltage Range | 19.2…28.8V |
| Input Voltage Type | AC/DC |
| Power Consumption | 50 V.A |
| Current | 11A Nominal value 1 20 V |
| Width, Height, Depth, Weight | 60mm, 58mm, 95mm, 0.1kg |
| ROHS Declaration | View Document |
| ROHS Information | Following EU Directive 2011/65/EU |
| Conflict Minerals Reporting Template (CMRT) | Download Excel |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | B2B |
| Declaration of Conformity – CE | View Certificate |
| EU Data Act Compliance | 2025 Applicable – Compliant |
| ETIM 9 | EC002540 – DC-power supply |
| ETIM 10 | EC002540 – DC-power supply |
