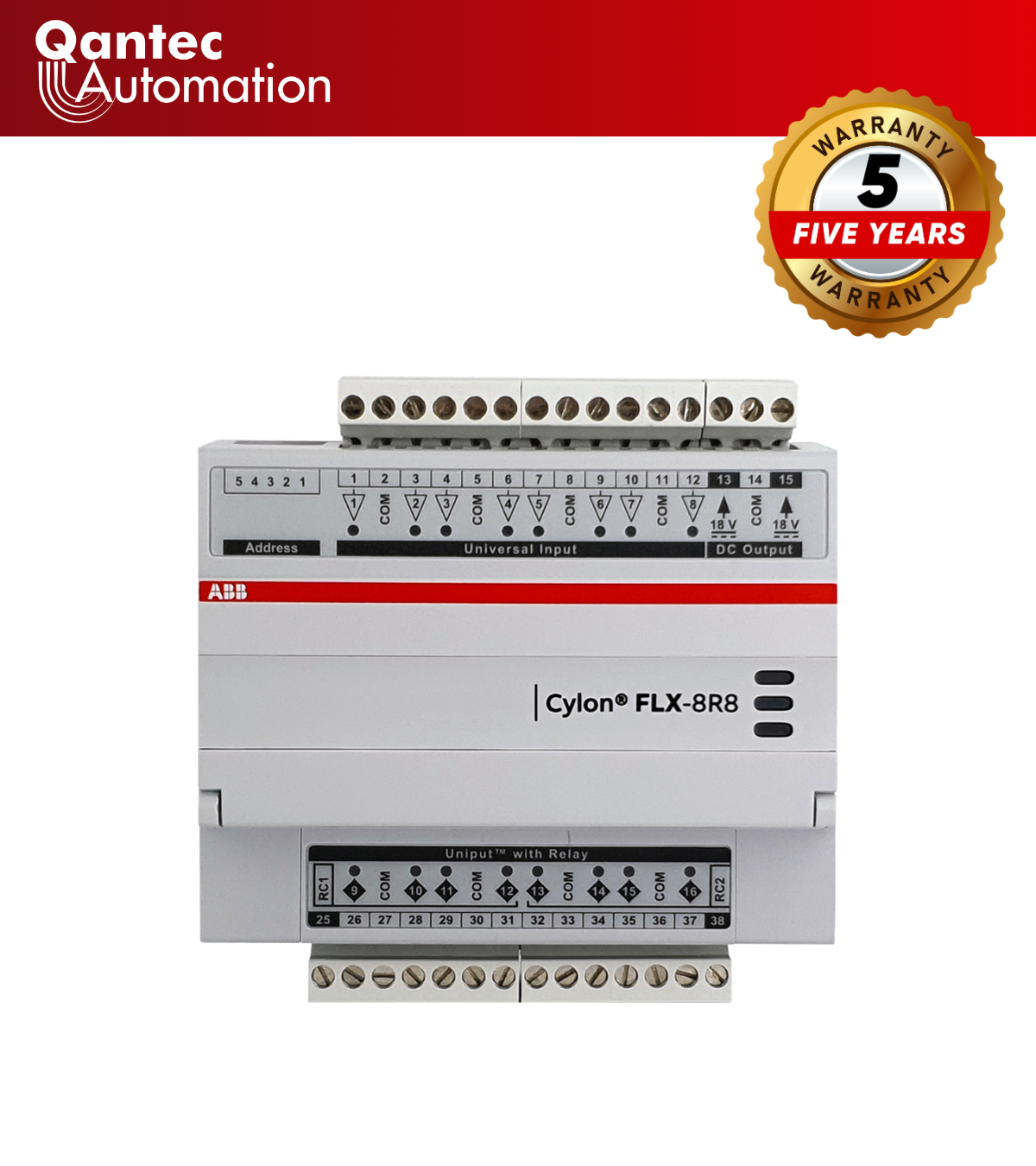

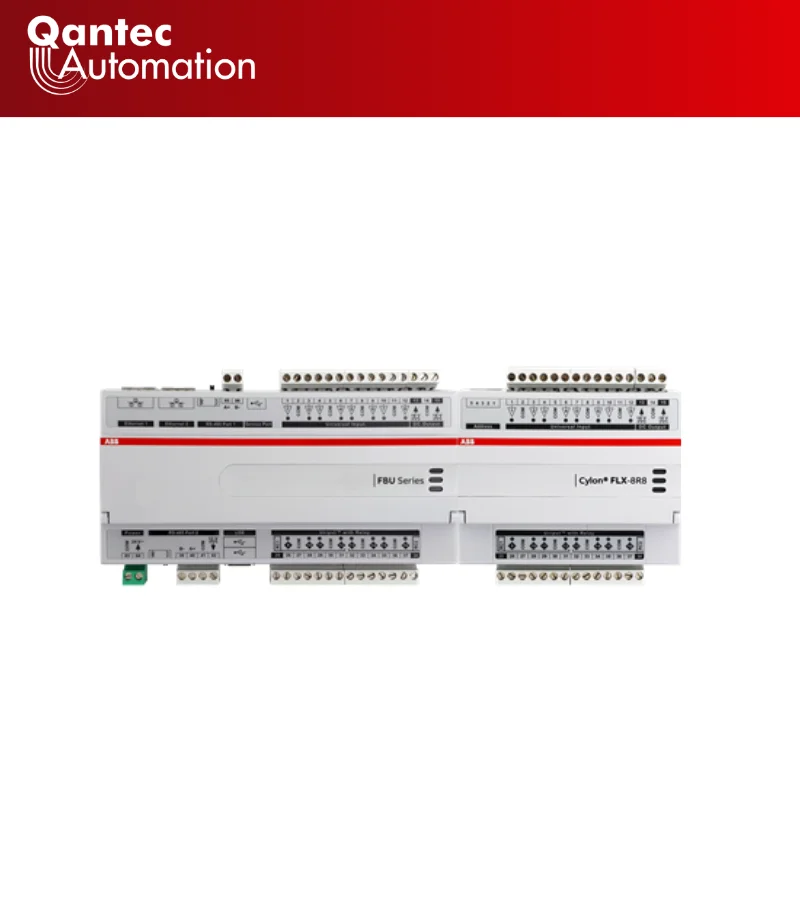

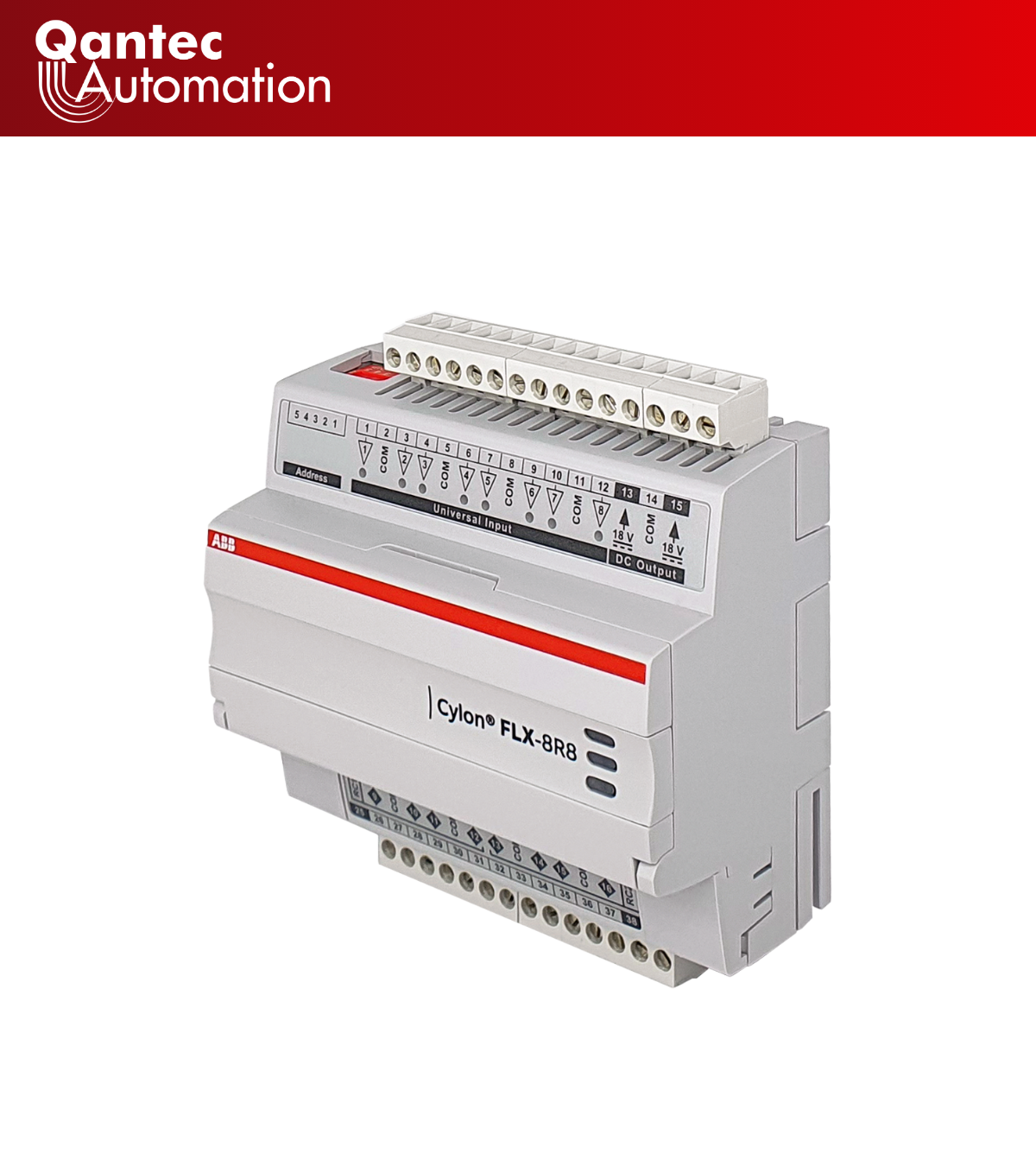

16-Point Field Level eXpansion (FLX) I/O module for CBX. Module features 8 UniPutsTM with Relay outputs (software configurable for AI, AO, DI or DO-R (Relay)) and 8 UI. A maximum of three FLX modules may be added to a single CBX.
ABB FLX-8R8 (1M101100)
$732.75 ex GST
Share:
Product Description
Product Specification
| Specification | Details |
|---|---|
| Product ID | 2CQG200706R1021 |
| EAN | 5391539122505 |
| Product Type | 1M101100 |
| Product Name | FLX-8R8 |
| Product Category | Expansion Modules |
| Description | 16-Point Field Level eXpansion (FLX) I/O module for CBX. Module features 8 UniPuts™ with Relay outputs (software configurable for AI, AO, DI or DO-R (Relay)) and 8 UI. A maximum of three FLX modules may be added to a single CBX. |
| Price excluding GST | 732.75 |
| Manual | View Manual |
| Air Temperature | -25 … 50 °C |
| Degree of Protection | IP20 |
| Technical Information | View Datasheet |
| Communication | FLX-Bus |
| No. of Channels | 16 |
| Digital Inputs | 0 |
| Inputs | Universal 8 |
| Batteries | 0 |
| Analog Inputs | 8 |
| Analog Outputs | |
| Supply Voltage | |
| Voltage Range | |
| Input Voltage Type | AC/DC |
| Power Consumption | 4.9 W |
| Width, Height, Depth, Weight | 100mm, 57mm, 90mm, 0.2kg |
| ROHS Declaration | View Document |
| ROHS Information | Following EU Directive 2011/65/EU |
| Conflict Minerals Reporting Template (CMRT) | Download Excel |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | B2B |
| Declaration of Conformity – CE | View Certificate |
| EU Data Act Compliance | 2025 Applicable – Compliant |
| ETIM 9 | EC010957 – Free programmable controller extension |
| ETIM 10 | EC010957 – Free programmable controller extension |
