$1,258.48 ex GST
Share:

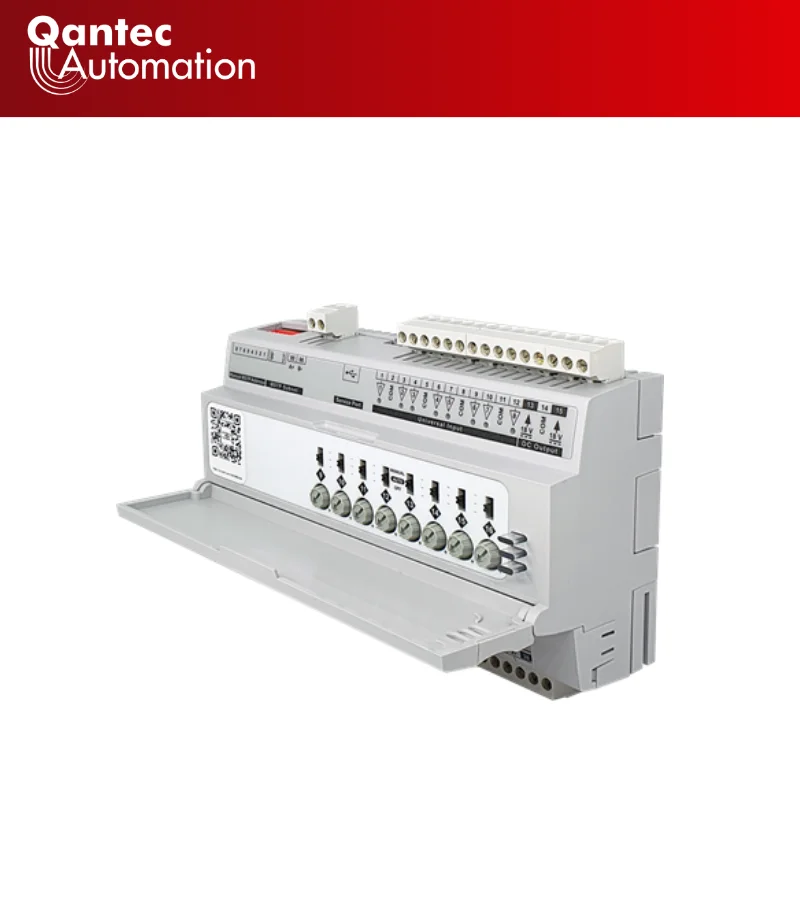

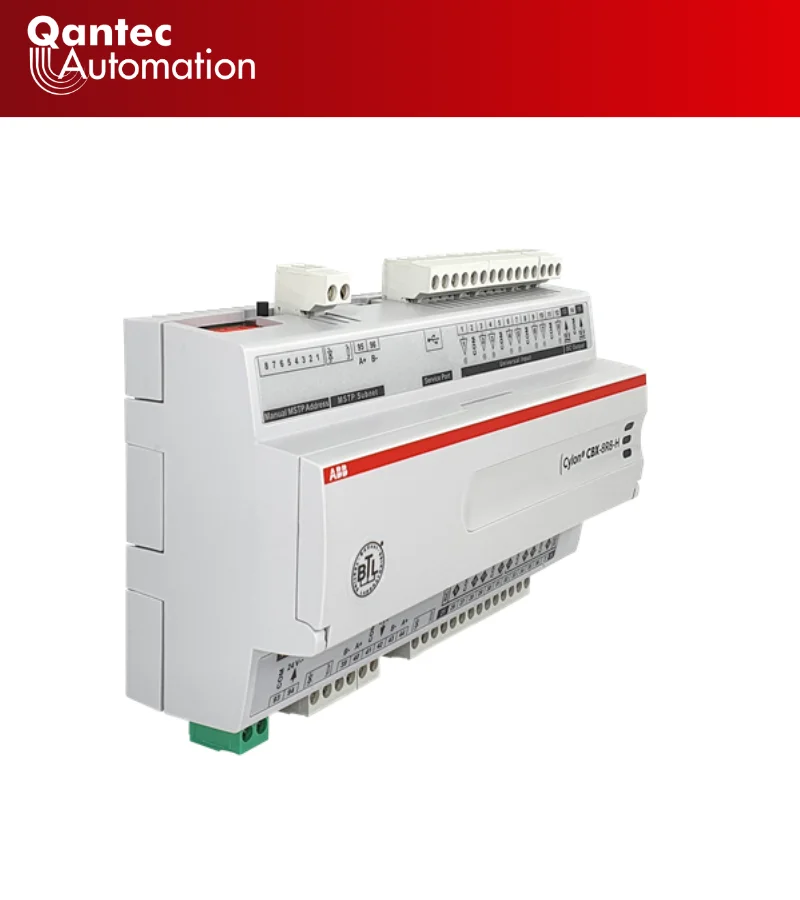

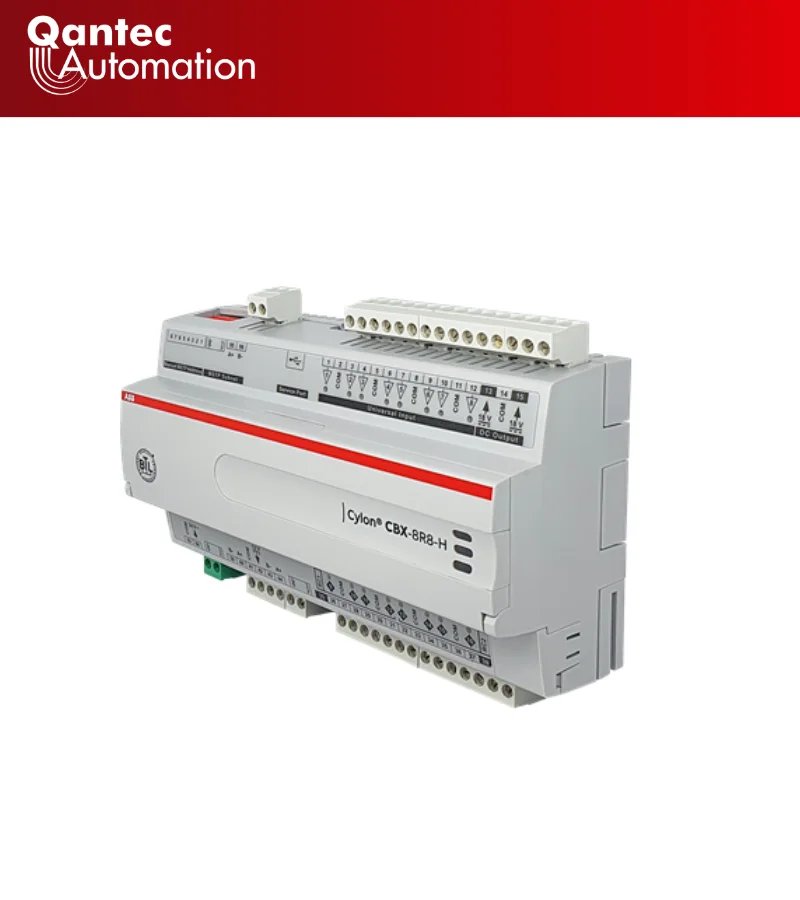

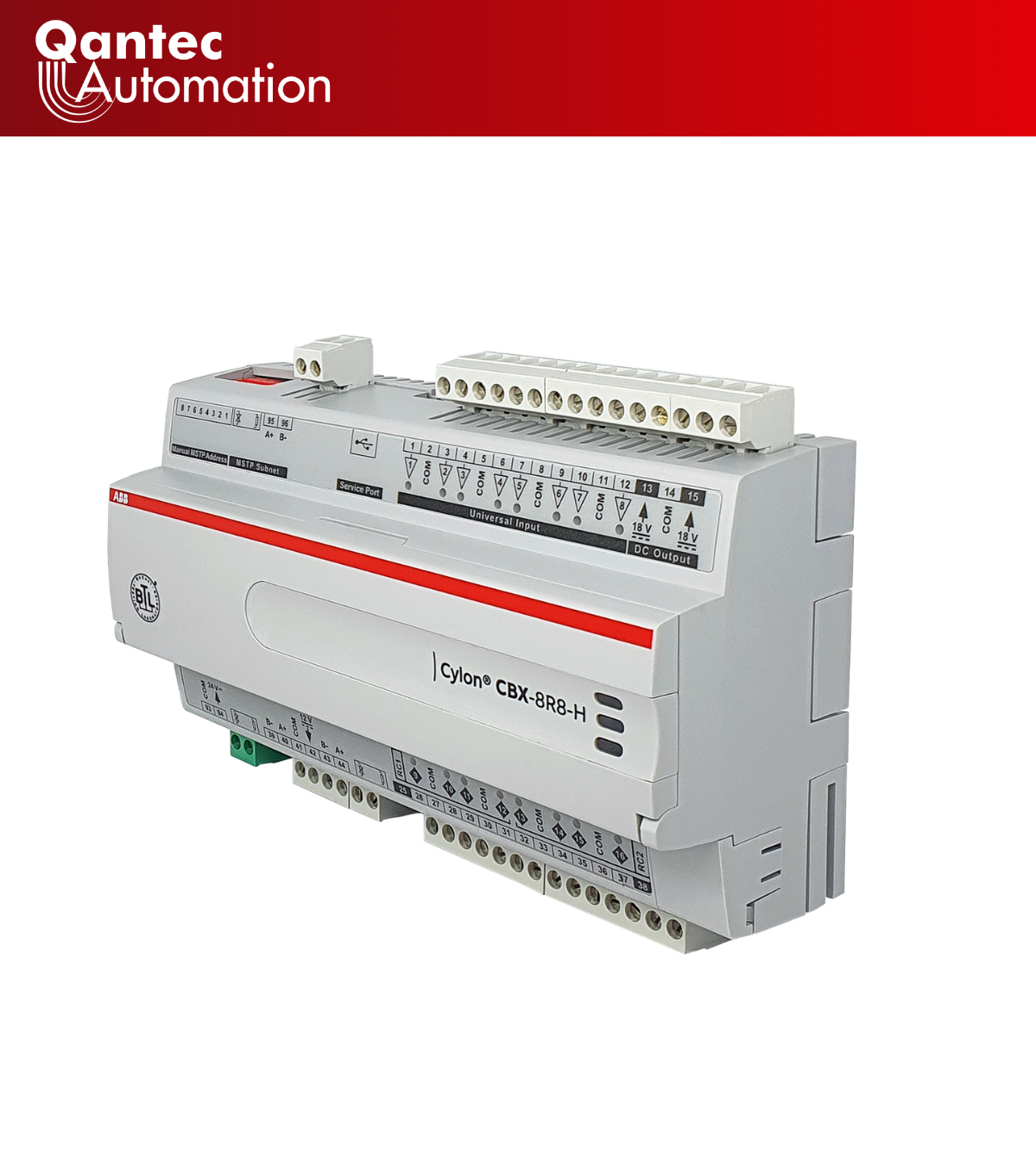

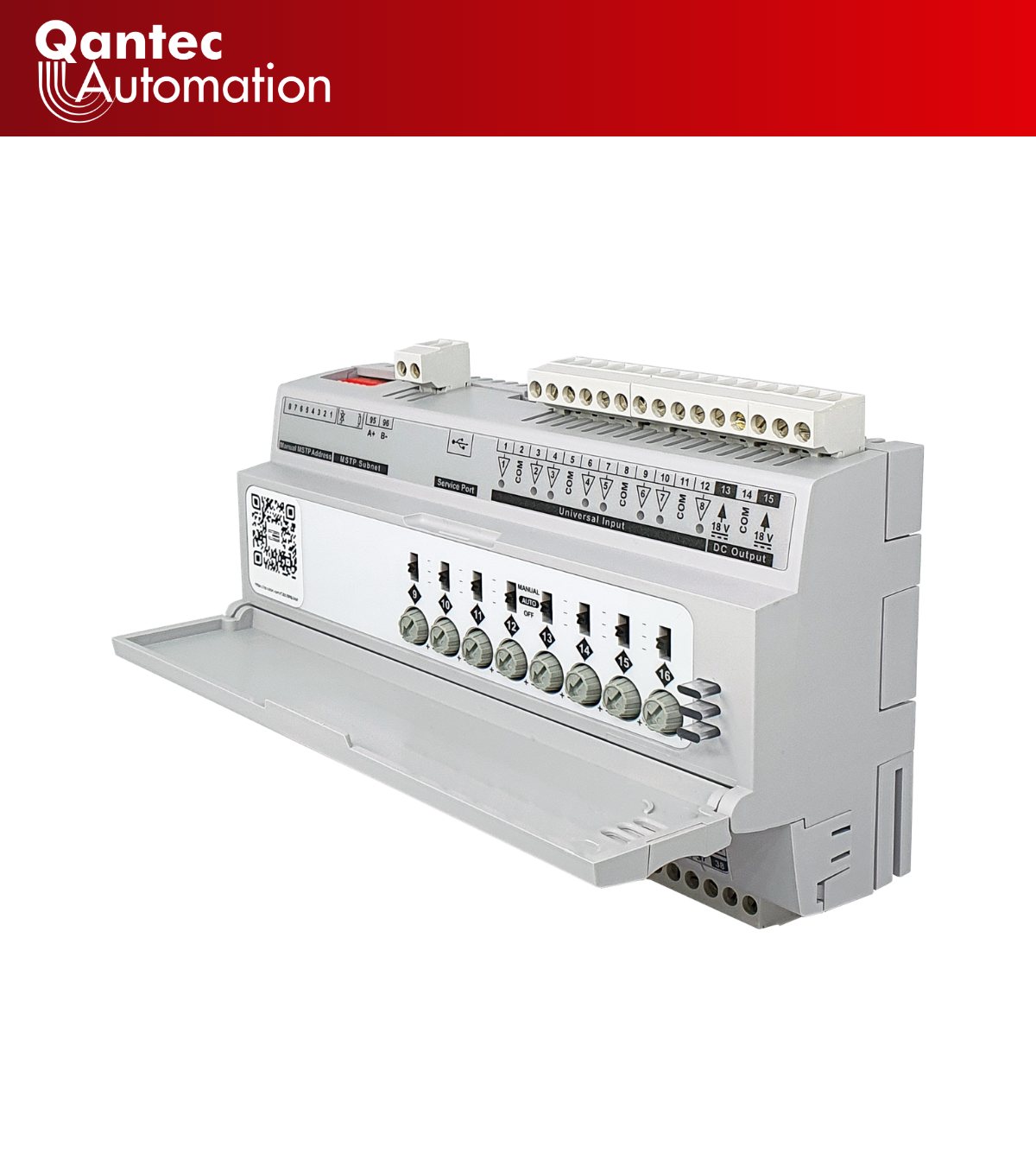

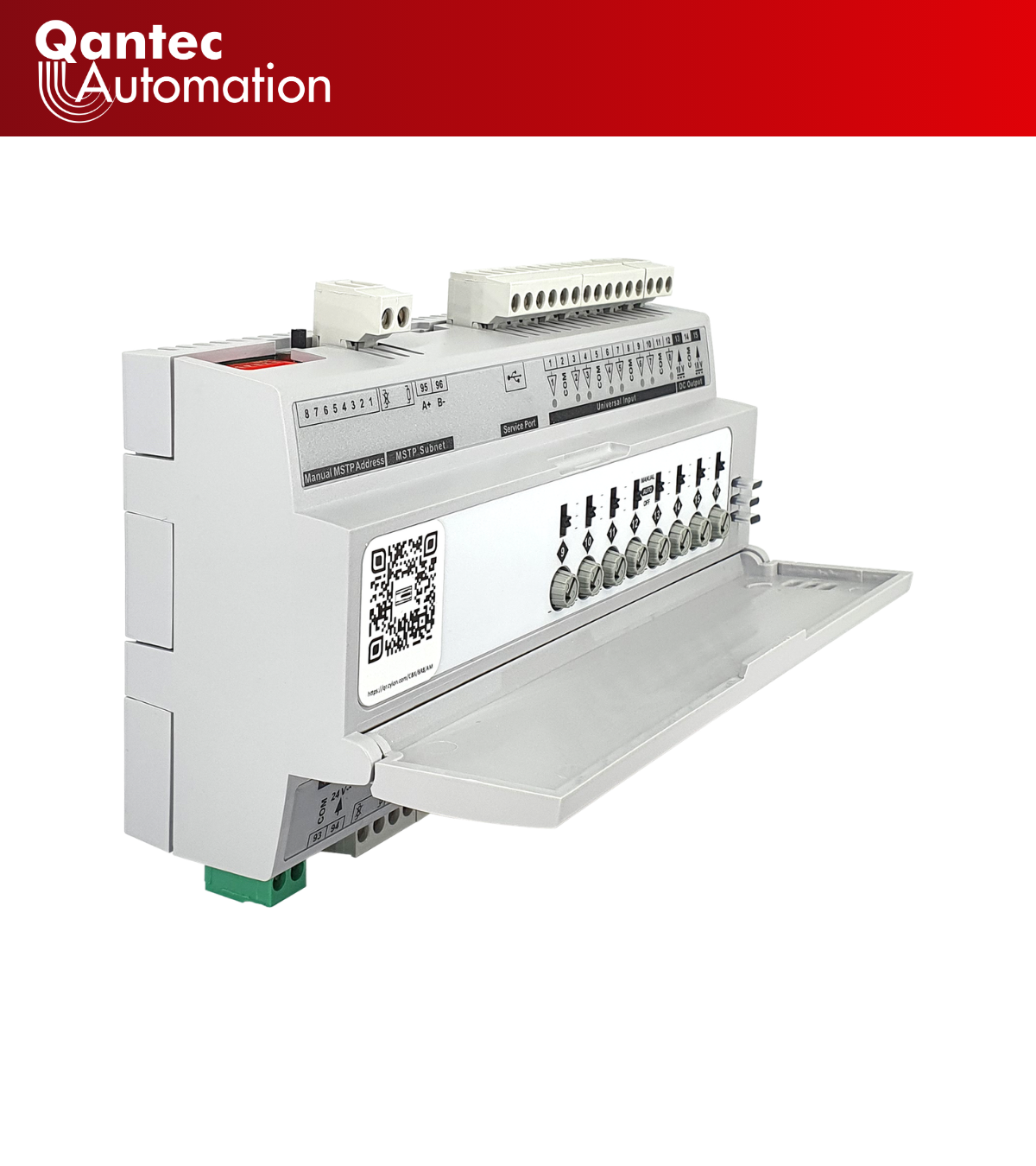

16- Point BACnet® B-AAC programmable controller with HOA switches and potentiometers for control and monitoring of HVAC equipment and plants. Controller features 8 UniPuts™ with Relay outputs (software configurable for AI, AO, DI or DO-R (Relay)) and 8 UI. Includes support for 4 Modbus® RTU devices or 40 points.
| Specification | Details |
|---|---|
| Product ID | 2CQG201004R1021 |
| EAN | 5391539122659 |
| Product Type | 1M100102 |
| Product Name | CBX-8R8-H |
| Product Category | Bacnet MSTP controller |
| Description | 16-Point BACnet® B-AAC programmable controller with HOA switches and potentiometers for control and monitoring of HVAC equipment and plants. Controller features 8 UniPuts™ with Relay outputs (software configurable for AI, AO, DI or DO-R (Relay)) and 8 UI. Includes support for 4 Modbus® RTU devices or 40 points. |
| Price excluding GST | 1,258.48 |
| Manual | View Manual |
| Air Temperature | -25 … 50 °C |
| Degree of Protection | IP20 |
| Technical Information | View Datasheet |
| Communication | MS/TP |
| No. of Channels | 16 |
| Digital Inputs | 8 |
| Inputs | Universal 8 |
| Batteries | 1 |
| Analog Inputs | 8 |
| Analog Outputs | 8 |
| Supply Voltage | 24…24V |
| Voltage Range | 19.2…28.8V |
| Input Voltage Type | AC/DC |
| Power Consumption | 50 V.A |
| Width, Height, Depth, Weight | 90mm, 57mm, 163mm, 0.4kg |
| ROHS Declaration | View Document |
| ROHS Information | Following EU Directive 2011/65/EU |
| Conflict Minerals Reporting Template (CMRT) | Download Excel |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | B2B |
| Declaration of Conformity – CE | View Certificate |
| EU Data Act Compliance | 2025 Applicable – Compliant |
| ETIM 9 | EC011487 – Free programmable controller |
| ETIM 10 | EC011487 – Free programmable controller |
