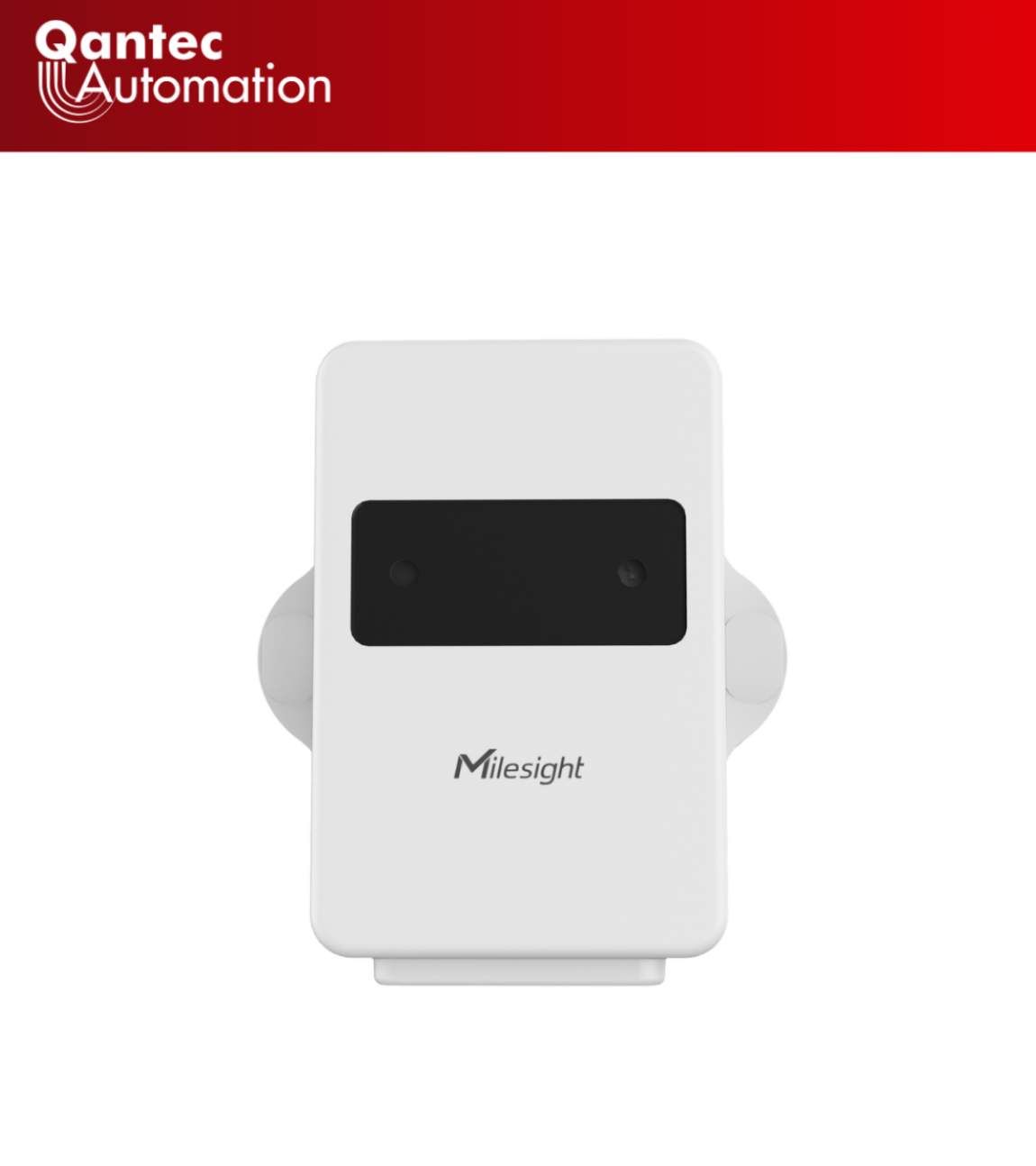

Milesight TS60x – Temperature and Humidity Sensor

The Milesight TS601 is a high-performance 4G sensor engineered for precision cold chain monitoring.

By providing real-time temperature tracking during storage and transit, it safeguards food and pharmaceutical integrity, ensures strict regulatory compliance, and minimizes costly product loss.

Equipped with a built-in indicator to indicate device status and threshold alarms.

Ideal for use in cold chains, pharmaceutical storage, food processing, and other critical environments where precise temperature control is essential.

From truck trailers and cargo crates to specialized medical coolers, the TS601 delivers a comprehensive, traceable data stream. By monitoring temperature, humidity, light, tilt, and location in real-time, it provides total visibility and security at every stage of the cold chain.

Key Features:

• Reliable Battery Life of Up to 4.8 Years
• IP67 Waterproofing
• Positioning Reporting
• Four Mounting Options
• 4G Connectivity (Cat-1) for Remote Monitoring
• Flexible Installation, No Vehicle Modification
• Food-Contact-Safe Housing
• Smart Reporting Strategy
• flight mode for Aviation Compliance
• NFC Setup in minutes
• Light sensor for door open detection
• tilt sensor for Abnormal motion detection
• track where your cargo moves

Please note: For wireless network capabilities, an applicable Gateway is required to utilise the IoT Cloud software as demonstrated below.

The Milesight TS602 is a high-performance 4G sensor engineered for precision cold chain monitoring.

By providing real-time temperature tracking during storage and transit, it safeguards food and pharmaceutical integrity, ensures strict regulatory compliance, and minimizes costly product loss.

Equipped with a external probe with Display to indicate device status and threshold alarms.

Ideal for use in cold chains, pharmaceutical storage, food processing, and other critical environments where precise temperature control is essential.

From truck trailers and cargo crates to specialized medical coolers, the TS602 delivers a comprehensive, traceable data stream. By monitoring temperature, humidity, light, tilt, and location in real-time, it provides total visibility and security at every stage of the cold chain.

Key Features:

• • Reliable Battery Life of Up to 4.8 Years
  • IP67 Waterproofing
  • Positioning Reporting
  • Four Mounting Options
  • 4G Connectivity (Cat-1) for Remote Monitoring
  • Flexible Installation, No Vehicle Modification
  • Food-Contact-Safe Housing
  • Multiple Probe Options
  • Smart Reporting Strategy
  • flight mode for Aviation Compliance
  • NFC Setup in minutes
  • Light sensor for door open detection
  • tilt sensor for Abnormal motion detection
  • track where your cargo moves

This Probe is applicable to the TS602 only

Measuring Range -50 °C ~ 500 °C Measuring Accuracy ± 0.5°C (-50°C~50°C), ± 1°C (50°C~500°C) Measuring Resolution 0.1°C Probe Type Straight tube, 304 Stainless Steel Probe Length 3cm Cable Length 1.5 m Cable Material Fiberglass Cable Operating Temperature -30 °C~105 °C Ingress Protection IP30*

This Probe is applicable to the TS602 only

Measuring Range -40 °C ~125 °C Measuring Accuracy ± 0.4°C Measuring Resolution 0.1°C Probe Type Needle, Food Grade 316 Stainless Steel Probe Length 10cm Cable Length 1.5 m Cable Material Food Grade Silicone Cable Operating Temperature -60 °C~250 °C Ingress Protection IP67*

This Probe is applicable to the TS602 only

Measuring Range -40 °C ~ 125 °C Measuring Accuracy ± 0.5°C (-40°C~40°C), ± 1°C (40°C~125°C) Measuring Resolution 0.1°C Probe Type Straight tube, 304 Stainless Steel Probe Length 5cm Cable Length 2 m Cable Material PVC Cable Operating Temperature -30 °C~105 °C Ingress Protection IP67*

This Probe is applicable to the TS602 only

Measuring Range -200 °C ~ 50 °C Measuring Accuracy ± 0.5°C (-50°C~50°C), ± 1°C (50°C~500°C) Measuring Resolution 0.55°C Probe Type Straight tube, 304 Stainless Steel Probe Length 3cm Cable Length 1.5 m Cable Material  Teflon Cable Operating Temperature -200 °C~175 °C Ingress Protection IP67*

This Probe is applicable to the TS602 only

Measuring Range -40 °C ~ 125 °C Measuring Accuracy ± 0.5°C (-10°C~85°C), ± 2°C (40°C~10°C,85°C~125°C )

Detachable Probe, Probe Length 5cm, Probe Material  316 Stainless Steel, Cable Material: PVC

Protection IP67*

This Probe is applicable to the TS602 only

Measuring Range -40 °C ~ 125 °C Measuring Accuracy ± 0.3°C (-40°C~0°C), ± 2°C (0°C~60°C),± 5°C (60°C~125°C)

Humidity Range 0% ~ 100 % RH Accuracy ± 2°C

Detachable Probe, Probe Length 5cm, Probe Material  316 Stainless Steel, Cable Material: PVC

Protection IP67*
