$3,956.48 ex GST
Share:

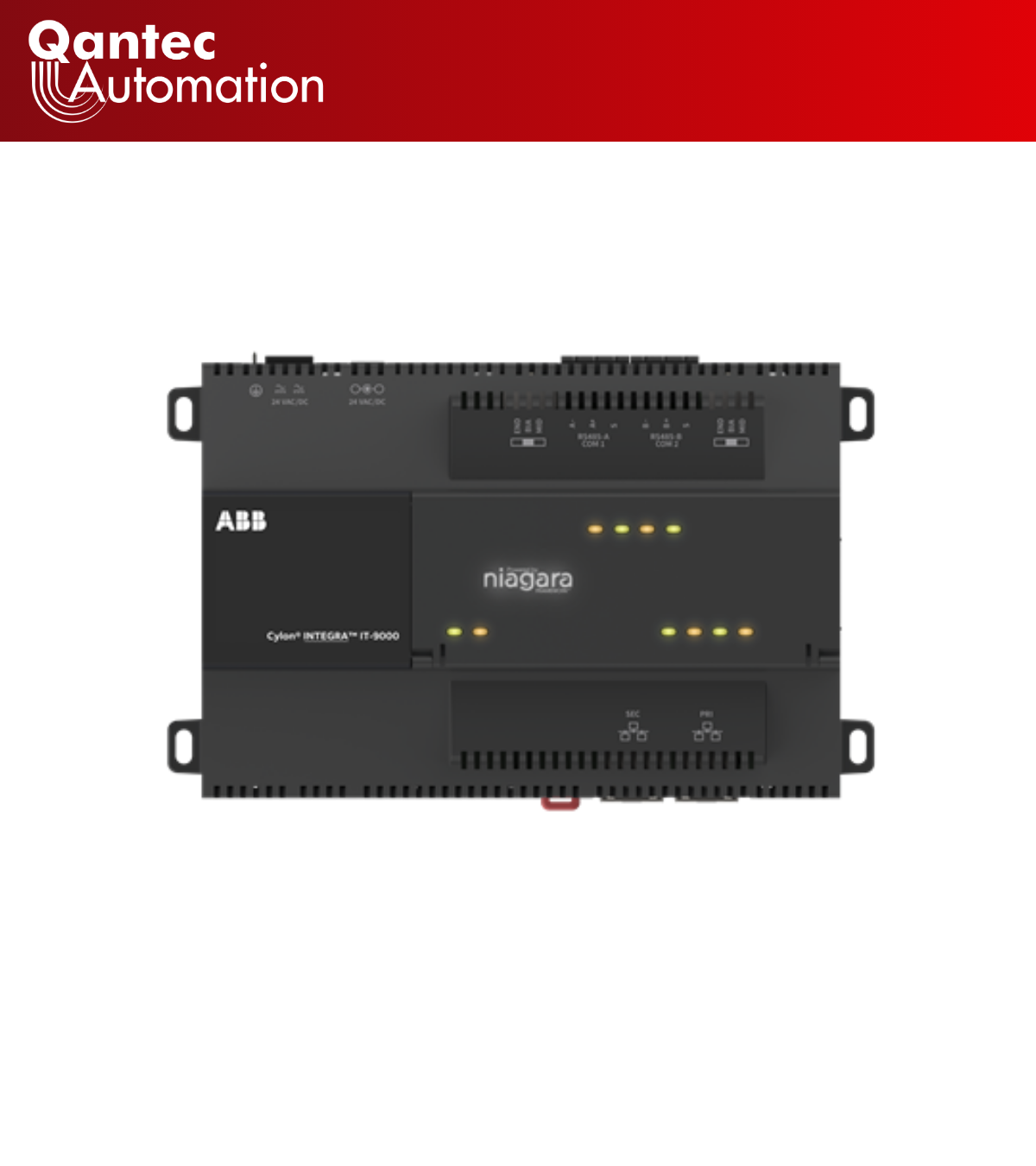

INTEGRA N4 network controller with embedded webserver includes 2 isolated RS-485 ports, configurable for 9.6 to 115.2 kbps. Support for 2 RS-485 protocols (BACnet MS/TP, LON, Modbus RTU). Two RJ-45 10/100 MB Ethernet with TCP/IP support for FOX, BACnet/IP, and Modbus TCP. NO Wi-Fi CONNECTIVITY. Web Interface, embedded Workbench, integrated power supply and USB backup and restore.
| Specification | Details |
|---|---|
| Product ID | 2CQG150138R2011 |
| EAN |
5391539126596
|
| Product Name |
IT-9000-NOWIFI
|
| Product Category | IP Controllers |
| Description | INTEGRA N4 network controller with embedded webserver includes 2 isolated RS-485 ports, configurable for 9.6 to 115.2 kbps. Support for 2 RS-485 protocols (BACnet MS/TP, LON, Modbus RTU). Two RJ-45 10/100 MB Ethernet with TCP/IP support for FOX, BACnet/IP, and Modbus TCP. NO Wi-Fi CONNECTIVITY. Web Interface, embedded Workbench, integrated power supply and USB backup and restore. |
| Price excluding GST | 3,956.48 |
| Degree of Protection | IP20 |
| Technical Information | View Datasheet |
| Analog inputs | 0 |
| Analog outputs | 0 |
| Supply Voltage | 24…24V |
| Input Voltage Type | AC/DC |
| Width, Height, Depth, Weight | 171.1mm, 110mm, 61mm, 0.39kg |
| ROHS Declaration | View Document |
| ROHS Information | Following EU Directive 2011/65/EU |
| Conflict Minerals Reporting Template (CMRT) | Download Excel |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | B2B |
| Declaration of Conformity – CE | View Certificate |
| EU Data Act Compliance | 2025 Applicable – Compliant |
| ETIM 9 | EC011487 – Free programmable controller |
| ETIM 10 | EC011487 – Free programmable controller |
In stock
