$1,104.00 ex GST
Share:

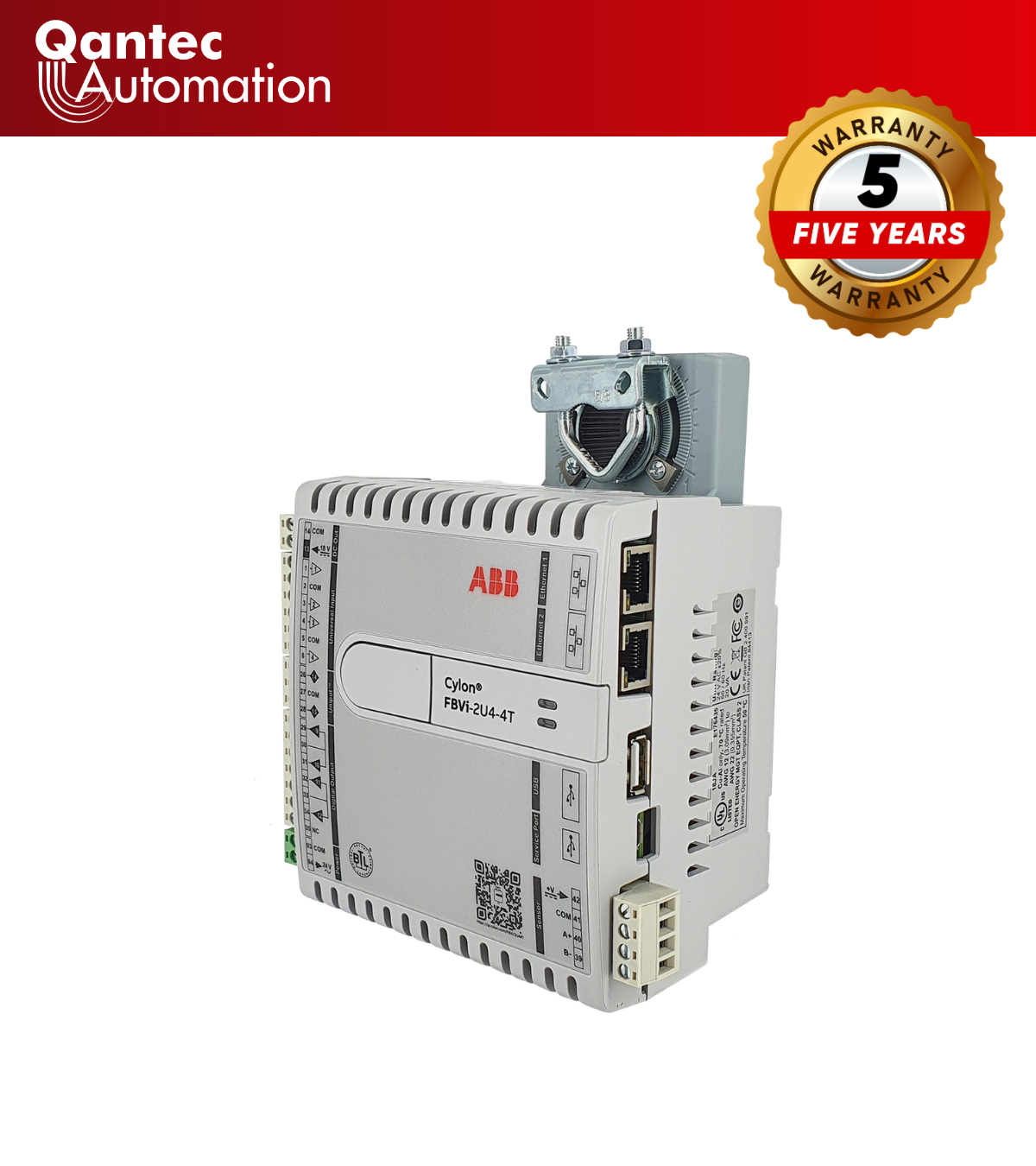

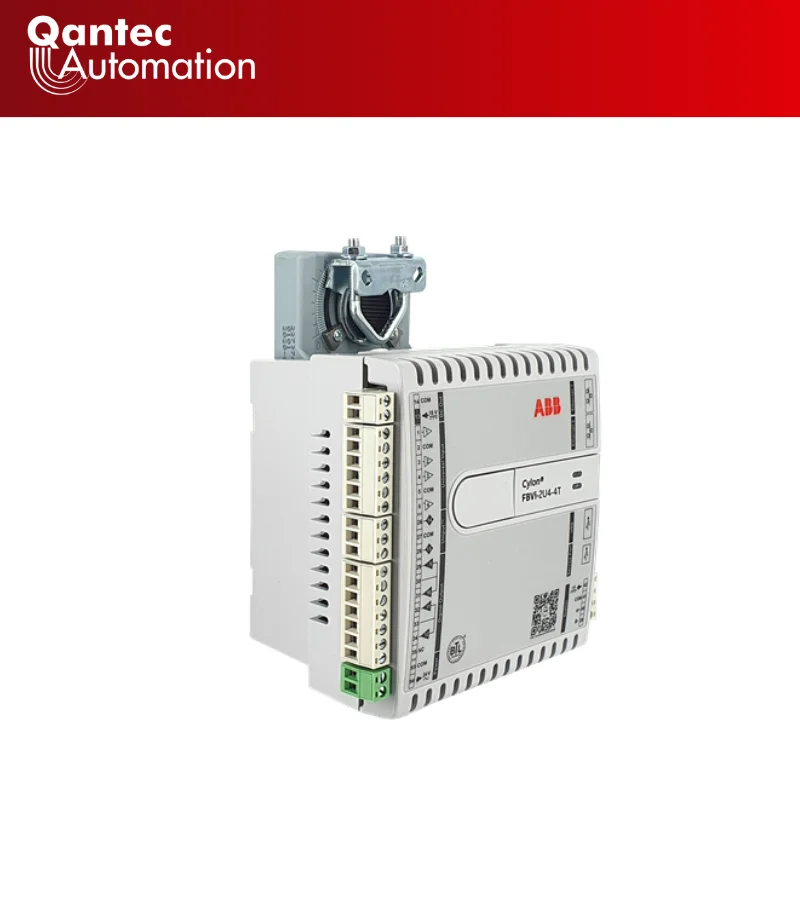

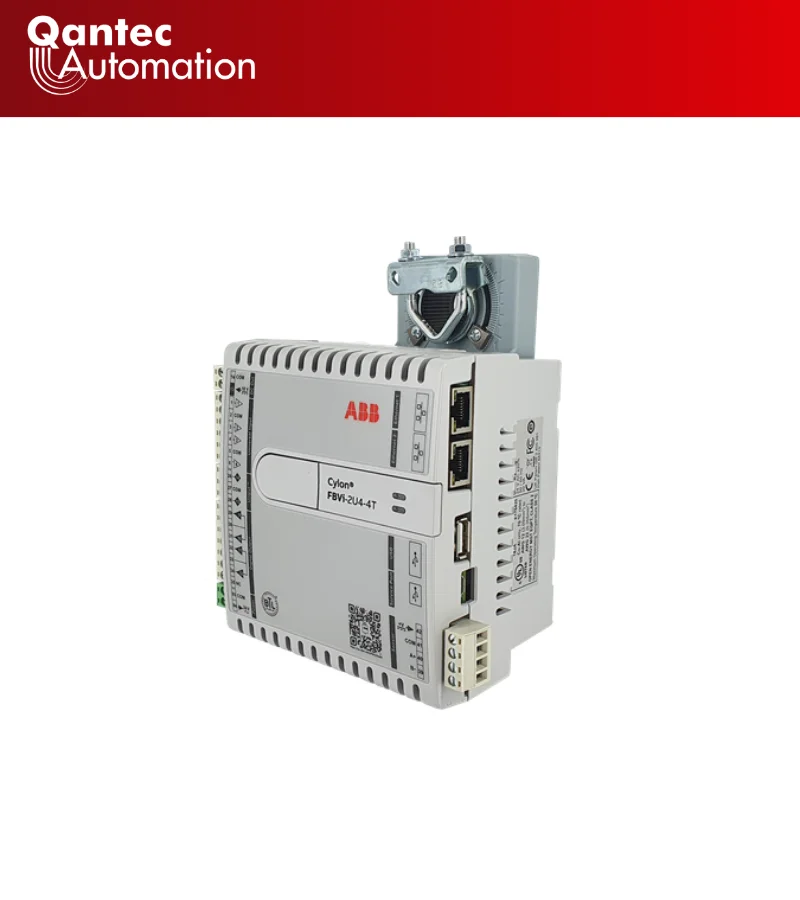

10-Point BACnet/IP B-BC programmable VAV controller for control and monitoring of small plant or HVAC equipment. Controller features 2 UniPuts™ (software configurable for AI, AO, DI or DO-R (Relay)) 4 DO and 4 UI. Preloaded Strategy with Metric units.
| Specification | Details |
|---|---|
| Product ID | 2CQG201016R1021 |
| EAN | 5391539125315 |
| Product Type | 1M710121 |
| Product Name | FBVi-2U4-4T-SI |
| Product Category | IP VAV Controller |
| Description | 10-Point BACnet/IP B-BC programmable VAV controller for control and monitoring of small plant or HVAC equipment. Controller features 2 UniPuts™ (software configurable for AI, AO, DI or DO-R (Relay)), 4 DO and 4 UI. Preloaded Strategy with Metric units. |
| Price excluding GST | 1,104.00 |
| Manual | View Manual |
| Air Temperature | -25 … 50 °C |
| Degree of Protection | IP20 |
| Technical Information | View Datasheet |
| Communication | IP |
| No. of Channels | 10 |
| Digital Inputs | 4 |
| Inputs | Universal 4 |
| Batteries | 0 |
| Analog Inputs | – |
| Analog Outputs | Triac 4, Actuator 1 |
| Supply Voltage | 24…24V |
| Voltage Range | 28.8V |
| Input Voltage Type | AC |
| Power Consumption | 20 V.A |
| Width, Height, Depth, Weight | 130mm, 100mm, 100mm, 0.9kg |
| ROHS Declaration | View Document |
| ROHS Information | Following EU Directive 2011/65/EU |
| Conflict Minerals Reporting Template (CMRT) | Download Excel |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | B2B |
| Declaration of Conformity – CE | View Certificate |
| EU Data Act Compliance | 2025 Applicable – Compliant |
| ETIM 9 | EC011487 – Free programmable controller |
| ETIM 10 | EC011487 – Free programmable controller |
