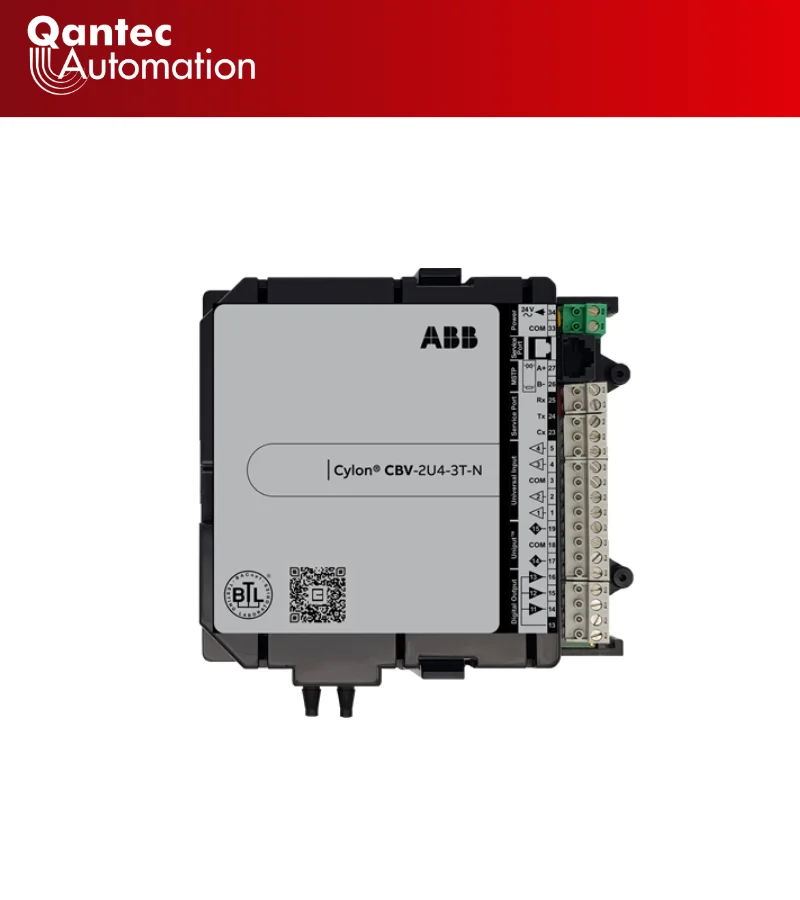

BACnet B-AAC single-duct VAV terminal unit controller without actuator. Controller features 2 UniPutsTM (software configured for AI, AO, DI or DO), 4 UI and 3 DO (Triac). Built-in differential pressure transducer (0-1.3″w.c., 0…320 Pa). Freely programmable, c/w pre-loaded factory configuration strategy with SI units (degC)
| Specification | Details |
|---|---|
| Product ID | 2CQG201512R0021 |
| EAN | 5391539123045 |
| Product Type | 1M710117 |
| Product Name | CBV-2U4-3T-N-SI |
| Product Category | Bacnet MSTP VAV Controllers |
| Description | BACnet B-AAC single-duct VAV terminal unit controller without actuator. Controller features 2 UniPuts™ (software configured for AI, AO, DI or DO), 4 UI and 3 DO (Triac). Built-in differential pressure transducer (0-1.3″w.c., 0…320 Pa). Freely programmable, c/w pre-loaded factory configuration strategy with SI units (°C). |
| Price excluding GST | 891.36 |
| Manual | View Manual |
| Air Temperature | 0 … 50 °C |
| Degree of Protection | IP20 |
| Technical Information | View Datasheet |
| Communication | MS/TP |
| No. of Channels | – |
| Digital Inputs | 5 |
| Inputs | – |
| Batteries | 0 |
| Analog Inputs | 6 |
| Analog Outputs | 2 |
| Supply Voltage | 24 … 24V |
| Voltage Range | 20.4 … 27.6V |
| Input Voltage Type | AC |
| Power Consumption | 55V.A |
| Width, Height, Depth, Weight | 180mm, 50mm, 123mm, 0.3kg |
| ROHS Declaration | View Document |
| ROHS Information | Following EU Directive 2011/65/EU |
| Conflict Minerals Reporting Template (CMRT) | Download Excel |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | B2B |
| Declaration of Conformity – CE | View Certificate |
| EU Data Act Compliance | 2025 Applicable – Compliant |
| ETIM 9 | EC011487 – Free programmable controller |
| ETIM 10 | EC011487 – Free programmable controller |
