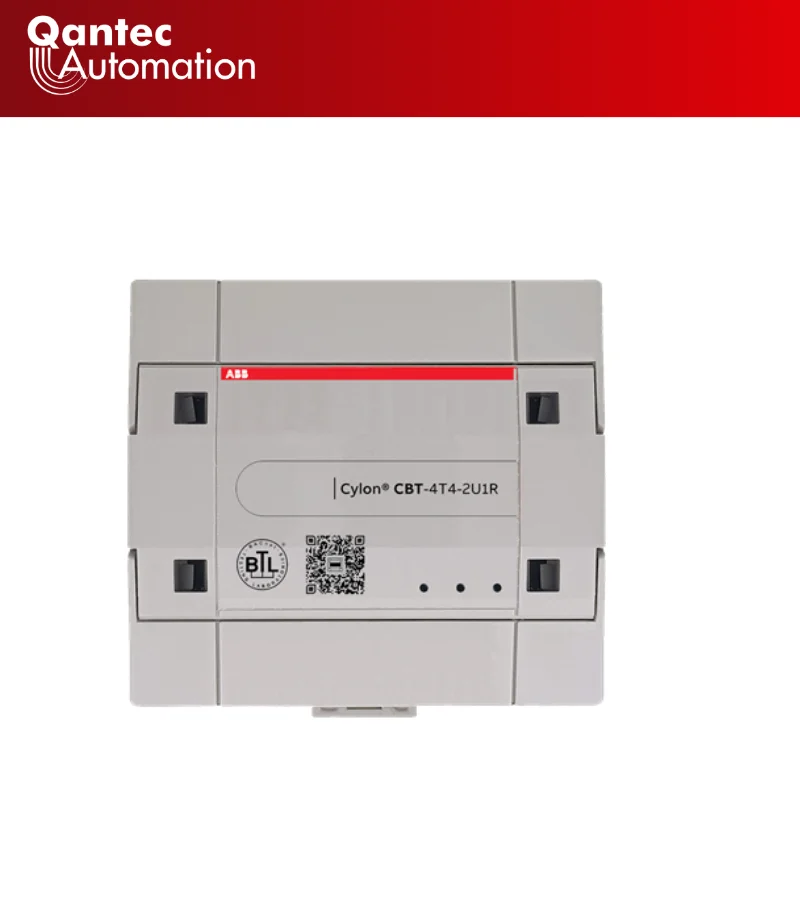

11-Point BACnet B-AAC programmable controller for terminal applications such as fan coil units with ECM, heat pumps, unit vents, chilled ceilings, and miscellaenous points. Controller features 4 UniPutsTM with Triac outputs (software configured for AI, AO, DI or DO-T (Triac), 4 UI and 2 UniPuts and 1 X 8A mains Relay Digital Output. Freely programmable
| Specification | Details |
|---|---|
| Product ID | 2CQG201308R1021 |
| EAN | 5391539122901 |
| Product Type | 1M610105 |
| Product Name | CBT-4T4-2U1R |
| Product Category | Bacnet MSTP controller |
| Description | 11-Point BACnet B-AAC programmable controller for terminal applications such as fan coil units with ECM, heat pumps, unit vents, chilled ceilings, and miscellaneous points. Controller features 4 UniPuts™ with Triac outputs (software configured for AI, AO, DI or DO-T (Triac)), 4 UI, 2 UniPuts and 1 × 8A mains Relay Digital Output. Freely programmable. |
| Price excluding GST | 605.89 |
| Manual | View Manual |
| Air Temperature | 0 … 50 °C |
| Degree of Protection | IP20 |
| Technical Information | View Datasheet |
| Communication | MS/TP |
| No. of Channels | 11 |
| Digital Inputs | 4 |
| Inputs | |
| Batteries | 0 |
| Analog Inputs | 8 |
| Analog Outputs | 6 |
| Supply Voltage | 24…24V |
| Voltage Range | 20.4…27.6V |
| Input Voltage Type | AC/DC |
| Power Consumption | 12 V.A |
| Width, Height, Depth, Weight | 125mm, 40mm, 120mm, 0.3kg |
| ROHS Declaration | View Document |
| ROHS Information | Following EU Directive 2011/65/EU |
| Conflict Minerals Reporting Template (CMRT) | Download Excel |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | B2B |
| Declaration of Conformity – CE | View Certificate |
| EU Data Act Compliance | 2025 Applicable – Compliant |
| ETIM 9 | EC011487 – Free programmable controller |
| ETIM 10 | EC011487 – Free programmable controller |
