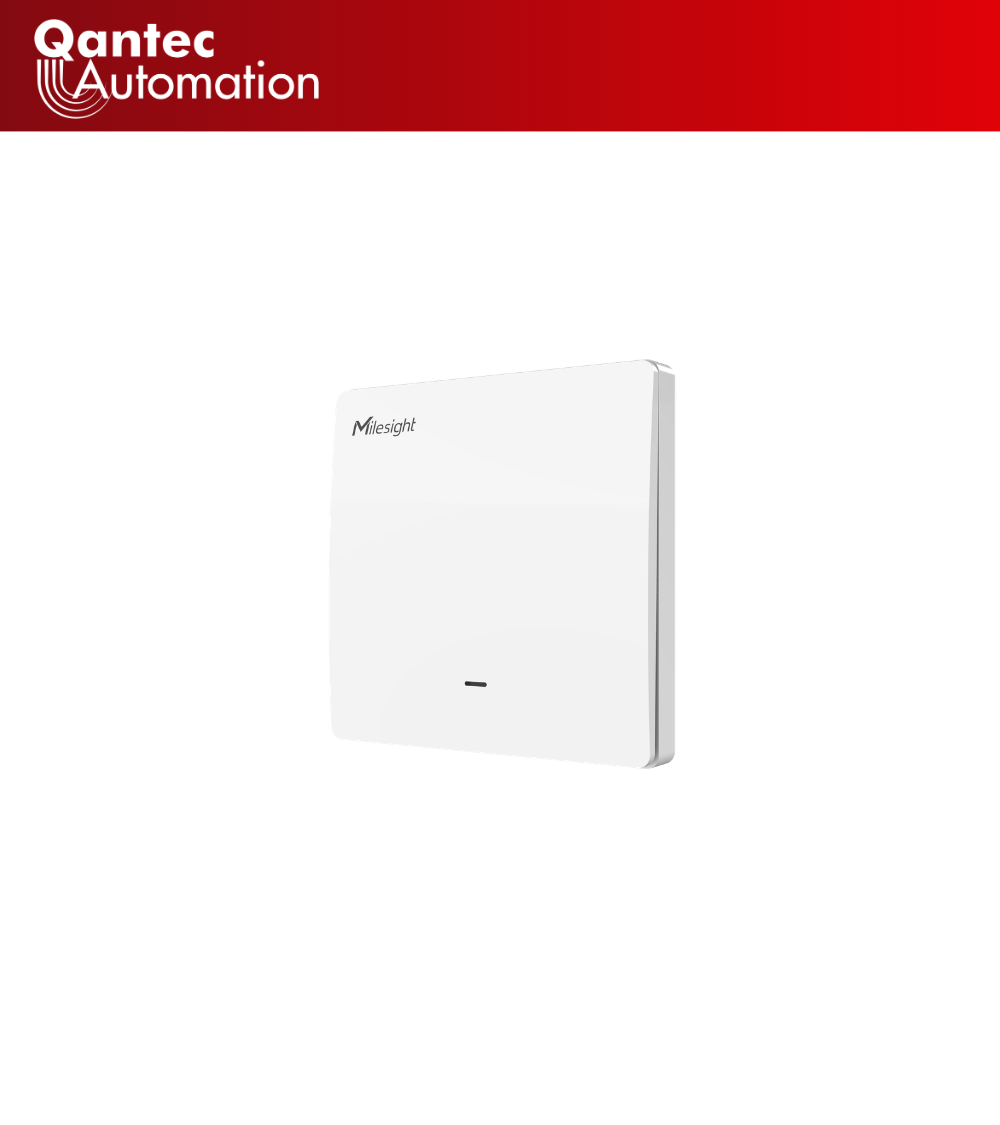

Milesight WS501-915M Smart LoRaWAN Wall Switch
Transform traditional lighting control into an intelligent automated system with the outstanding Milesight WS501-915M.
This premier smart wall switch directly replaces conventional wall switches to provide seamless local and remote control of lights and electrical appliances. Operating on the 915 MHz frequency band (US915/AU915), the WS501-915M combines tactile button responsiveness with advanced energy measurement capabilities to deliver comprehensive power monitoring across indoor environments. Built with high-reliability relays and anti-flaming polycarbonate material, it ensures safe, long-term operation.
Seamlessly integrating with Milesight LoRaWAN® gateways and leading LoRaWAN® network servers, the WS501-915M operates in Class C mode for continuous, real-time responsiveness. When paired with the Milesight IoT Cloud platform, it enables remote web and mobile control, scheduled automation, and scene synchronization triggered by other IoT sensors.
The Milesight D2D (Device-to-Device) capability offers ultra-low latency control directly between switches and sensors without requiring a gateway, while the built-in power measurement feature collects precise voltage, current, active power, and total energy consumption data in real time.
Ideal for diverse indoor applications such as smart offices, commercial facilities, hospitality, and residential properties, the WS501-915M is your go-to solution for reliable lighting automation and energy management.
Discover the key features of this switch:
Key Features
- Remote & Local Control: Manage lighting manually via button press or remotely through LoRaWAN® downlinks and mobile apps.
- Real-Time Energy Monitoring: Measure voltage, current, active power, power factor, and total energy consumption (kWh).
- Milesight D2D Communication: Enable ultra-low latency direct device-to-device control without passing through a gateway.
- Overload & Overcurrent Protection: Safely disconnect circuits when current or power thresholds are exceeded.
- Effortless NFC Configuration: Simplify setup and parameter adjustment in seconds using a smartphone with the Milesight ToolBox app.
- Built-in Ice Blue Indicator: Soft LED indicator light allows for easy location and operation in dark environments.
Enhanced Safety Features:
The WS501-915M includes built-in overload protection to automatically shut off power during unexpected current surges, as well as a software switch-lock function to prevent unauthorized local tampering.
Ultra-Low Latency Communication:
By leveraging the Milesight D2D protocol alongside standard LoRaWAN® Class C operation, the switch ensures near-instantaneous response times, enabling instant automated triggers across your smart building setup.
Milesight Smart Building Automation offers:
-
Reliable Data Transmission: Long-range wireless coverage reaching up to 15 km in line-of-sight conditions and 2 km in urban spaces.
-
Multicast Capability: Group multiple switches together to control entire lighting zones or floors simultaneously.
-
Automated Scheduling: Set flexible timers, daily schedules, and time-based ON/OFF routines to maximize energy efficiency.
This versatile solution supports a range of applications:
-
Modernizing office lighting for smart energy compliance.
-
Managing room controls in hotel and hospitality guest suites.
-
Optimizing facility lighting schedules in schools and universities.
-
Automating showroom and display lighting in retail stores.
-
Enhancing home automation and residential smart lighting networks.
Electrical & Power Specifications:
-
Input Voltage: 100 ~ 250 VAC, 50/60 Hz mains powered (3-wire version).
-
Max Resistive Load: Up to 10 A per Gang (Max 1000 W per Gang / 2000 W total).
-
Max Inductive Load: Up to 5 A per Gang.
-
Wireless Class: LoRaWAN® Class C (915 MHz frequency for US915/AU915 regions).
IMPORTANT – Sensor Operation
Please note: For wireless network capabilities, an applicable Gateway is required to utilise the IoT Cloud software as demonstrated below.
