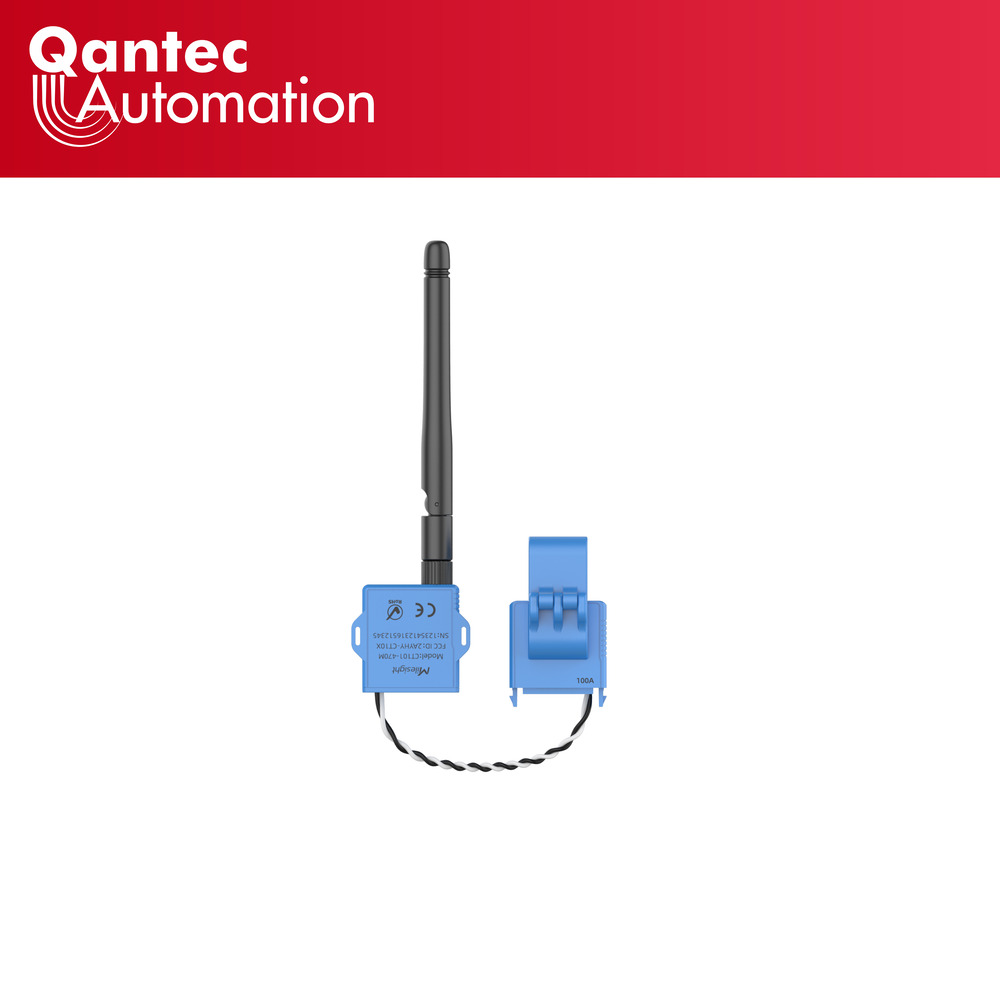

Milesight CT Series – Smart Current Transformer

The Smart Current Transformer is a sophisticated device designed to optimize energy management through its advanced features and LoRaWAN® connectivity:

• LoRaWAN® Connectivity: Utilizes LoRaWAN® technology for long-range, low-power wireless communication, allowing for seamless integration into IoT networks and efficient data transmission.
• Non-Intrusive Installation: Features a quick and easy installation process that does not require modifications to existing wiring, making it convenient and minimizing downtime.
• High Sampling Rate: With a sampling rate of up to 3.3kHz, it provides precise and detailed measurements of electrical currents, ensuring accurate energy consumption data.
• Cumulative Ampere-Hour Calculation: Measures and calculates cumulative ampere-hours every second, offering a granular view of energy usage over time.
• Energy Usage Patterns: Helps in identifying and analysing energy consumption patterns, enabling users to implement targeted energy-saving measures and improve efficiency.

The Smart Current Transformer’s combination of accurate measurements, easy installation, and advanced data analytics makes it an effective tool for optimizing energy usage and enhancing overall energy management.

Key Features

• Self-powered, eliminating the need for batteries.
• Superior accuracy with up to 3.3kHz frequency.
• Real-time calculation of accumulated ampere hours.
• Non-invasive installation with a detachable clamp design.
• Alerts for irregular current patterns.
• Compact size for flexible placement.
• Wireless design with LoRaWAN® technology.
• 100A current capacity with a 16mm wire hole.
• Single-phase measurement

Models

• CT101 With 100A Current Capacity

• CT103 With 250A Current Capacity

• CT105 With 500A Current Capacity

Real-Time Monitoring

The Smart Current Transformer reports RMS current and accumulated current data at intervals as short as one second, enabling prompt detection of anomalies and facilitating efficient energy management:

• High Accuracy: With a sampling frequency of up to 3.3 kHz, the Smart Current Transformer ensures accurate RMS current measurements, providing detailing insights into energy usage.
• Efficiency in Data Collection: Collects and analyses data in one place, providing a comprehensive overview of energy usage across different objects or circuits.
• Cost-Effective: Reduces equipment costs and installation complexity by consolidating measurement capabilities into a single unit.
• Streamlined Monitoring: Facilitates easy tracking and comparison of energy consumption between different objects, helping in identifying areas for improvement and potential savings.

Non-Invasive Installation

The user-friendly current clamp probe is designed for non-invasive and quick installation, eliminating the risk of circuit damage or power interruptions.

Easy Installation

The split-core design allows for quick, non-invasive installations, avoiding circuit damage or power disruptions.

Compact and Cable-Free

Its compact design fits easily in tight spaces, and its wireless nature simplifies installation, reducing labour costs and enhancing placement flexibility.

LoRaWAN® Connectivity

Features long-range data transmission up to 2 km in urban areas and 15 km in rural areas, compatible with standard LoRaWAN® gateways and servers.

The Smart Current Transformer is a sophisticated device designed to optimize energy management through its advanced features and LoRaWAN® connectivity:

• LoRaWAN® Connectivity: Utilizes LoRaWAN® technology for long-range, low-power wireless communication, allowing for seamless integration into IoT networks and efficient data transmission.
• Non-Intrusive Installation: Features a quick and easy installation process that does not require modifications to existing wiring, making it convenient and minimizing downtime.
• High Sampling Rate: With a sampling rate of up to 3.3kHz, it provides precise and detailed measurements of electrical currents, ensuring accurate energy consumption data.
• Cumulative Ampere-Hour Calculation: Measures and calculates cumulative ampere-hours every second, offering a granular view of energy usage over time.
• Energy Usage Patterns: Helps in identifying and analysing energy consumption patterns, enabling users to implement targeted energy-saving measures and improve efficiency.

The Smart Current Transformer’s combination of accurate measurements, easy installation, and advanced data analytics makes it an effective tool for optimizing energy usage and enhancing overall energy management.

Introducing the CT103 Smart Current Transformer

Key Features

• Self-powered
• Superior accuracy up to 3.3kHz frequency
• Real-time calculation of accumulated ampere hours
• Non-invasive installation
• Alerts for irregular current patterns
• Compact size for flexible placement
• Wireless design with LoRaWAN® technology
• 250A Current Capacity
• Single-phase measurement

Models

• CT101 With 100A Current Capacity

• CT103 With 250A Current Capacity

• CT105 With 500A Current Capacity

Real-Time Monitoring

The Smart Current Transformer reports RMS current and accumulated current data at intervals as short as one second, enabling prompt detection of anomalies and facilitating efficient energy management:

• High Accuracy: With a sampling frequency of up to 3.3 kHz, the Smart Current Transformer ensures accurate RMS current measurements, providing detailing insights into energy usage.
• Efficiency in Data Collection: Collects and analyses data in one place, providing a comprehensive overview of energy usage across different objects or circuits.
• Cost-Effective: Reduces equipment costs and installation complexity by consolidating measurement capabilities into a single unit.
• Streamlined Monitoring: Facilitates easy tracking and comparison of energy consumption between different objects, helping in identifying areas for improvement and potential savings.

Non-Invasive Installation

The user-friendly current clamp probe is designed for non-invasive and quick installation, eliminating the risk of circuit damage or power interruptions.

Easy Installation

The split-core design allows for quick, non-invasive installations, avoiding circuit damage or power disruptions.

Compact and Cable-Free

Its compact design fits easily in tight spaces, and its wireless nature simplifies installation, reducing labour costs and enhancing placement flexibility.

LoRaWAN® Connectivity

Features long-range data transmission up to 2 km in urban areas and 15 km in rural areas, compatible with standard LoRaWAN® gateways and servers.

The Smart Current Transformer is a sophisticated device designed to optimize energy management through its advanced features and LoRaWAN® connectivity:

• LoRaWAN® Connectivity: Utilizes LoRaWAN® technology for long-range, low-power wireless communication, allowing for seamless integration into IoT networks and efficient data transmission.
• Non-Intrusive Installation: Features a quick and easy installation process that does not require modifications to existing wiring, making it convenient and minimizing downtime.
• High Sampling Rate: With a sampling rate of up to 3.3kHz, it provides precise and detailed measurements of electrical currents, ensuring accurate energy consumption data.
• Cumulative Ampere-Hour Calculation: Measures and calculates cumulative ampere-hours every second, offering a granular view of energy usage over time.
• Energy Usage Patterns: Helps in identifying and analysing energy consumption patterns, enabling users to implement targeted energy-saving measures and improve efficiency.

The Smart Current Transformer’s combination of accurate measurements, easy installation, and advanced data analytics makes it an effective tool for optimizing energy usage and enhancing overall energy management.

Introducing the CT105 Smart Current Transformer

Key Features

• Self-powered
• Superior accuracy up to 3.3kHz frequency
• Real-time calculation of accumulated ampere hours
• Non-invasive installation
• Alerts for irregular current patterns
• Compact size for flexible placement
• Wireless design with LoRaWAN® technology
• 500A Current Capacity
• Single-phase measurement

Models

• CT101 With 100A Current Capacity
• CT103 With 250A Current Capacity
• CT105 With 500A Current Capacity

Real-Time Monitoring

The Smart Current Transformer reports RMS current and accumulated current data at intervals as short as one second, enabling prompt detection of anomalies and facilitating efficient energy management:

• High Accuracy: With a sampling frequency of up to 3.3 kHz, the Smart Current Transformer ensures accurate RMS current measurements, providing detailing insights into energy usage.
• Efficiency in Data Collection: Collects and analyses data in one place, providing a comprehensive overview of energy usage across different objects or circuits.
• Cost-Effective: Reduces equipment costs and installation complexity by consolidating measurement capabilities into a single unit.
• Streamlined Monitoring: Facilitates easy tracking and comparison of energy consumption between different objects, helping in identifying areas for improvement and potential savings.

Non-Invasive Installation

The user-friendly current clamp probe is designed for non-invasive and quick installation, eliminating the risk of circuit damage or power interruptions.

Easy Installation

The split-core design allows for quick, non-invasive installations, avoiding circuit damage or power disruptions.

Compact and Cable-Free

Its compact design fits easily in tight spaces, and its wireless nature simplifies installation, reducing labour costs and enhancing placement flexibility.

LoRaWAN® Connectivity

Features long-range data transmission up to 2 km in urban areas and 15 km in rural areas, compatible with standard LoRaWAN® gateways and servers.

The Smart Current Transformer is a sophisticated device designed to optimize energy management through its advanced features and LoRaWAN® connectivity:

• LoRaWAN® Connectivity: Utilizes LoRaWAN® technology for long-range, low-power wireless communication, allowing for seamless integration into IoT networks and efficient data transmission.
• Non-Intrusive Installation: Features a quick and easy installation process that does not require modifications to existing wiring, making it convenient and minimizing downtime.
• High Sampling Rate: With a sampling rate of up to 3.3kHz, it provides precise and detailed measurements of electrical currents, ensuring accurate energy consumption data.
• Cumulative Ampere-Hour Calculation: Measures and calculates cumulative ampere-hours every second, offering a granular view of energy usage over time.
• Energy Usage Patterns: Helps in identifying and analysing energy consumption patterns, enabling users to implement targeted energy-saving measures and improve efficiency.

The Smart Current Transformer’s combination of accurate measurements, easy installation, and advanced data analytics makes it an effective tool for optimizing energy usage and enhancing overall energy management.

Introducing the CT303 Smart Current Transformer

Key Features

• Self-powered
• Superior accuracy up to 3.3kHz frequency
• Real-time calculation of accumulated ampere hours
• Non-invasive installation
• Alerts for irregular current patterns
• Compact size for flexible placement
• Wireless design with LoRaWAN® technology
• 300A Current Capacity
• Three-phase measurement

Models

• CT303 With 300A Current Capacity

• CT305 With 500A Current Capacity

• CT310 With 1000A Current Capacity

Multi-Target Current Measurement

The Smart Current Transformer features a versatile one-to-three design, allowing it to measure the electricity consumption of up to three separate objects or circuits simultaneously. Here’s how this design enhances its functionality:

• Multi-Object Measurement: Capable of monitoring up to three different electrical loads with a single device, this design reduces the need for multiple transformers and simplifies installation.
• Efficiency in Data Collection: Collects and analyses data from multiple sources in one place, providing a comprehensive overview of energy usage across different objects or circuits.
• Cost-Effective: Reduces equipment costs and installation complexity by consolidating measurement capabilities into a single unit.
• Streamlined Monitoring: Facilitates easy tracking and comparison of energy consumption between different objects, helping in identifying areas for improvement and potential savings.

Non-Invasive Installation

The user-friendly current clamp probe is designed for non-invasive and quick installation, eliminating the risk of circuit damage or power interruptions.

Easy Installation

The split-core design allows for quick, non-invasive installations, avoiding circuit damage or power disruptions.

Compact and Cable-Free

Its compact design fits easily in tight spaces, and its wireless nature simplifies installation, reducing labour costs and enhancing placement flexibility.

LoRaWAN® Connectivity

Features long-range data transmission up to 2 km in urban areas and 15 km in rural areas, compatible with standard LoRaWAN® gateways and servers

The Smart Current Transformer is a sophisticated device designed to optimize energy management through its advanced features and LoRaWAN® connectivity:

• LoRaWAN® Connectivity: Utilizes LoRaWAN® technology for long-range, low-power wireless communication, allowing for seamless integration into IoT networks and efficient data transmission.
• Non-Intrusive Installation: Features a quick and easy installation process that does not require modifications to existing wiring, making it convenient and minimizing downtime.
• High Sampling Rate: With a sampling rate of up to 3.3kHz, it provides precise and detailed measurements of electrical currents, ensuring accurate energy consumption data.
• Cumulative Ampere-Hour Calculation: Measures and calculates cumulative ampere-hours every second, offering a granular view of energy usage over time.
• Energy Usage Patterns: Helps in identifying and analysing energy consumption patterns, enabling users to implement targeted energy-saving measures and improve efficiency.

The Smart Current Transformer’s combination of accurate measurements, easy installation, and advanced data analytics makes it an effective tool for optimizing energy usage and enhancing overall energy management.

Introducing the CT305 Smart Current Transformer

Key Features

• Self-powered
• Superior accuracy up to 3.3kHz frequency
• Real-time calculation of accumulated ampere hours
• Non-invasive installation
• Alerts for irregular current patterns
• Compact size for flexible placement
• Wireless design with LoRaWAN® technology
• 500A Current Capacity
• Three-phase measurement

Models

• CT303 With 300A Current Capacity

• CT305 With 500A Current Capacity

• CT310 With 1000A Current Capacity

Multi-Target Current Measurement

The Smart Current Transformer features a versatile one-to-three design, allowing it to measure the electricity consumption of up to three separate objects or circuits simultaneously. Here’s how this design enhances its functionality:

• Multi-Object Measurement: Capable of monitoring up to three different electrical loads with a single device, this design reduces the need for multiple transformers and simplifies installation.
• Efficiency in Data Collection: Collects and analyses data from multiple sources in one place, providing a comprehensive overview of energy usage across different objects or circuits.
• Cost-Effective: Reduces equipment costs and installation complexity by consolidating measurement capabilities into a single unit.
• Streamlined Monitoring: Facilitates easy tracking and comparison of energy consumption between different objects, helping in identifying areas for improvement and potential savings.

Non-Invasive Installation

The user-friendly current clamp probe is designed for non-invasive and quick installation, eliminating the risk of circuit damage or power interruptions.

Easy Installation

The split-core design allows for quick, non-invasive installations, avoiding circuit damage or power disruptions.

Compact and Cable-Free

Its compact design fits easily in tight spaces, and its wireless nature simplifies installation, reducing labour costs and enhancing placement flexibility.

LoRaWAN® Connectivity

Features long-range data transmission up to 2 km in urban areas and 15 km in rural areas, compatible with standard LoRaWAN® gateways and servers.

The Smart Current Transformer is a sophisticated device designed to optimize energy management through its advanced features and LoRaWAN® connectivity:

• LoRaWAN® Connectivity: Utilizes LoRaWAN® technology for long-range, low-power wireless communication, allowing for seamless integration into IoT networks and efficient data transmission.
• Non-Intrusive Installation: Features a quick and easy installation process that does not require modifications to existing wiring, making it convenient and minimizing downtime.
• High Sampling Rate: With a sampling rate of up to 3.3kHz, it provides precise and detailed measurements of electrical currents, ensuring accurate energy consumption data.
• Cumulative Ampere-Hour Calculation: Measures and calculates cumulative ampere-hours every second, offering a granular view of energy usage over time.
• Energy Usage Patterns: Helps in identifying and analysing energy consumption patterns, enabling users to implement targeted energy-saving measures and improve efficiency.

The Smart Current Transformer’s combination of accurate measurements, easy installation, and advanced data analytics makes it an effective tool for optimizing energy usage and enhancing overall energy management.

Introducing the CT310 Smart Current Transformer

Key Features

• Self-powered
• Superior accuracy up to 3.3kHz frequency
• Real-time calculation of accumulated ampere hours
• Non-invasive installation
• Alerts for irregular current patterns
• Compact size for flexible placement
• Wireless design with LoRaWAN® technology
• 1000A Current Capacity
• Three-phase measurement

Models

• CT303 With 300A Current Capacity

• CT305 With 500A Current Capacity

• CT310 With 1000A Current Capacity

Multi-Target Current Measurement

The Smart Current Transformer features a versatile one-to-three design, allowing it to measure the electricity consumption of up to three separate objects or circuits simultaneously. Here’s how this design enhances its functionality:

• Multi-Object Measurement: Capable of monitoring up to three different electrical loads with a single device, this design reduces the need for multiple transformers and simplifies installation.
• Efficiency in Data Collection: Collects and analyses data from multiple sources in one place, providing a comprehensive overview of energy usage across different objects or circuits.
• Cost-Effective: Reduces equipment costs and installation complexity by consolidating measurement capabilities into a single unit.
• Streamlined Monitoring: Facilitates easy tracking and comparison of energy consumption between different objects, helping in identifying areas for improvement and potential savings.

Non-Invasive Installation

The user-friendly current clamp probe is designed for non-invasive and quick installation, eliminating the risk of circuit damage or power interruptions.

Easy Installation

The split-core design allows for quick, non-invasive installations, avoiding circuit damage or power disruptions.

Compact and Cable-Free

Its compact design fits easily in tight spaces, and its wireless nature simplifies installation, reducing labour costs and enhancing placement flexibility.

LoRaWAN® Connectivity

Features long-range data transmission up to 2 km in urban areas and 15 km in rural areas, compatible with standard LoRaWAN® gateways and servers
